HT230
HT230

Engine:Cummins QSB5.9-C180-Ⅱ

Engine power:132kW/2200rpm

Bucket capacity:1.0m³

Working weight:22000kg


Free Consultation:86-534-7452888

product details
configuration parameter
Construction case
Online inquiry





SPECIFICATIONS
Brand:HENGTE (恒特)Model:HT230
Engine Model:B5.9CS4 190CEngine Power:140kW/2200rpm
Engine Model:QSB5.9-C180-Ⅱ(出口)Engine Power:132kW/2200rpm
Maximum excavation radius:9935mmMaximum unloading height:6850mm
Overall weight:22000kgBucket capacity:1.0m³
Size specifications
Shipping length:9060mmShipping height:3070mm
Overall width:3000mmTail turning radius:2820mm
Turntable width:2500mmTrack length:4445mm
Track gauge:2390mmtrack width:600mm
Minimum ground clearance:460mmGround clearance of counterweight:1100mm
Scope of work and excavation force
Maximum excavation radius:9935mmMaximum excavation height:9750mm
Maximum excavation depth:6650mmMaximum unloading height:6850mm
Hydraulic system pressure:32MPaHydraulic system flow rate:2*224L/min
Bucket digging force:150kNDipper arm digging force:105kN
Bucket capacity:1.0m³Rotation speed:12r/min
Walking speed:2/4(km/h)

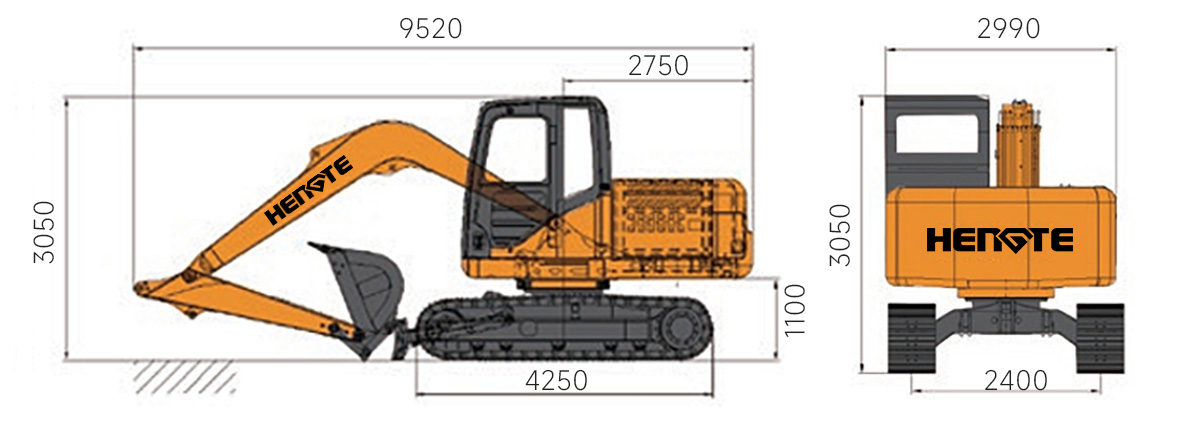

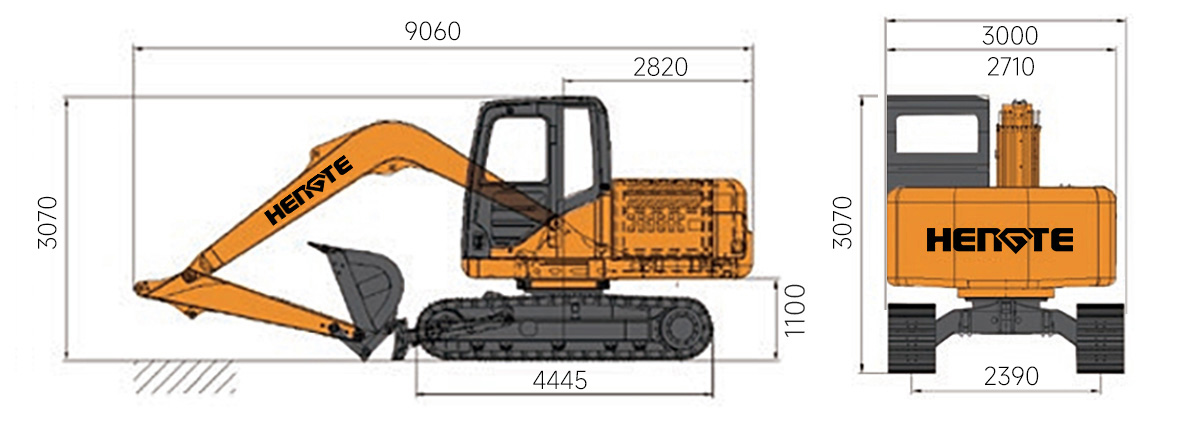

Parameter specification diagram (unit: mm)

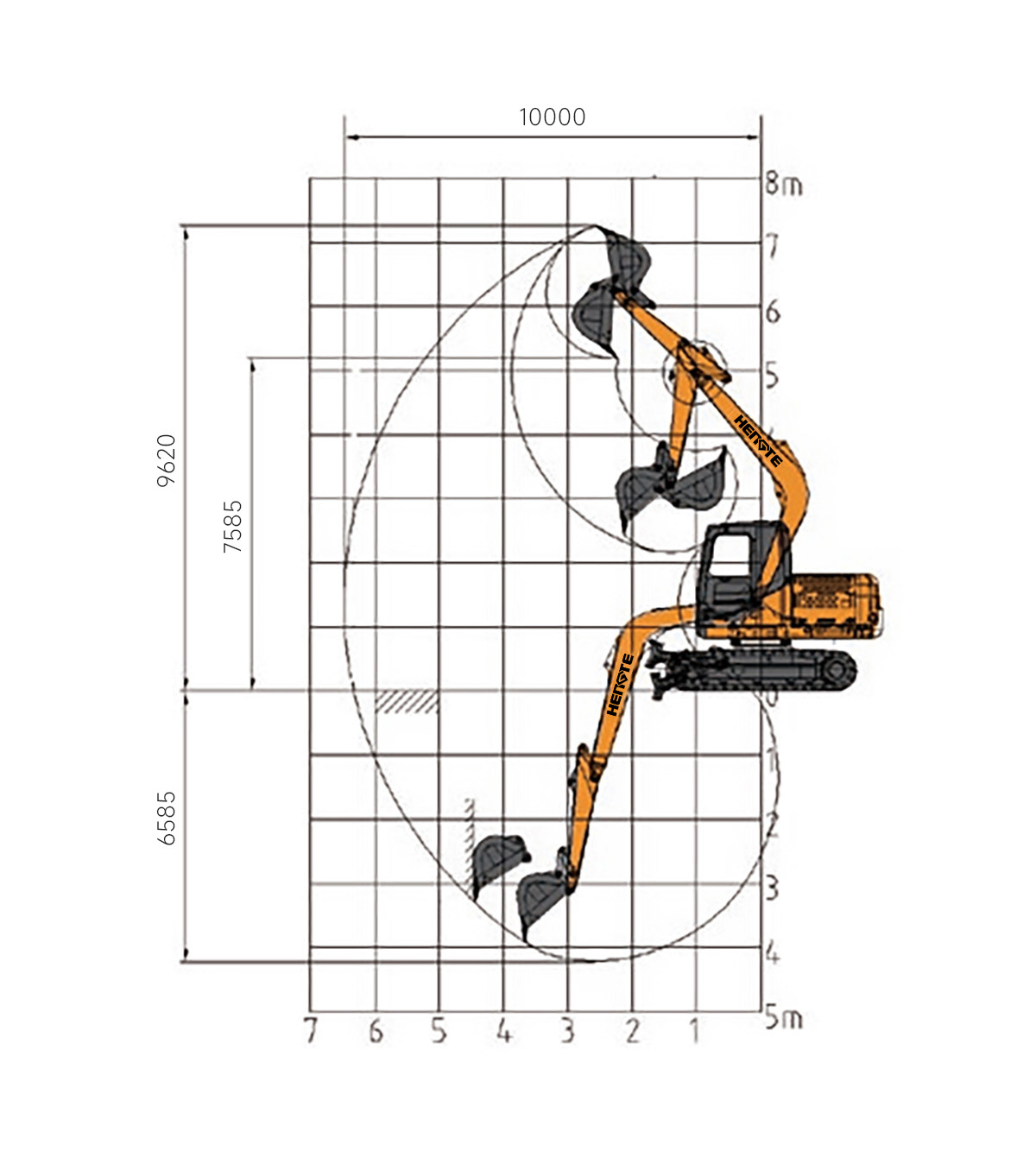

Diagram of homework scope (unit: mm)



Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine in the picture may include additional equipment.
