HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator
HT90W Hydraulic Wheel Excavator

Engine:YC4FA65-T300

Power:48kW/2200rpm

Bucket capacity:0.30m³

Working weight:7400kg

Applicable working conditions:微信截图_20230311105702.png


免费咨询:86-534-7452888

产品详情
配置参数
施工案例
在线询价


Highlights Introduction:

The newly designed driver's cabin increases the activity space by 15%, providing a wide field of view and excellent all-round view for the operator; Excellent sound insulation pads further reduce the noise level inside the driver's cabin; High quality insulated glass, complete with cigarette lighter, ashtray, cup holder, reading light, and various operation buttons arranged in a more user-friendly way, providing a more comfortable working environment.


Adopting a dual balance hydraulic suspension system, when encountering uneven road surfaces, the suspension system can automatically adjust the front axle tilt angle, keeping the driving level, reducing the overall bumpiness of the vehicle, and improving passenger comfort.

Adopting a brand new intelligent control system, the top domestic driving computer has powerful big data analysis and storage functions, and timely warning prompts.

Environmentally friendly National III engine, adopting the latest fuel saving technology, with strong power.


Stable

Full time four-wheel drive, the walking motor drives all four wheels directly through the gearbox and differential, and can cope with various road conditions.

Reinforced structural components are more adaptable to harsh working conditions and improve durability.1645238133255981.jpg

Security


Hydraulic system safety design, imported brake valve, fully hydraulic braking, effectively ensuring driving safety, equipped with super large brake accumulator, ensuring sufficient braking capacity even when the engine stops working.

Main components


The imported variable axial piston pump can provide precise flow control according to load requirements, match the real-time power of the engine, and achieve significant energy-saving effects.

Imported multi way valve, combined with imported pipelines, can achieve stable composite action and improve work efficiency.

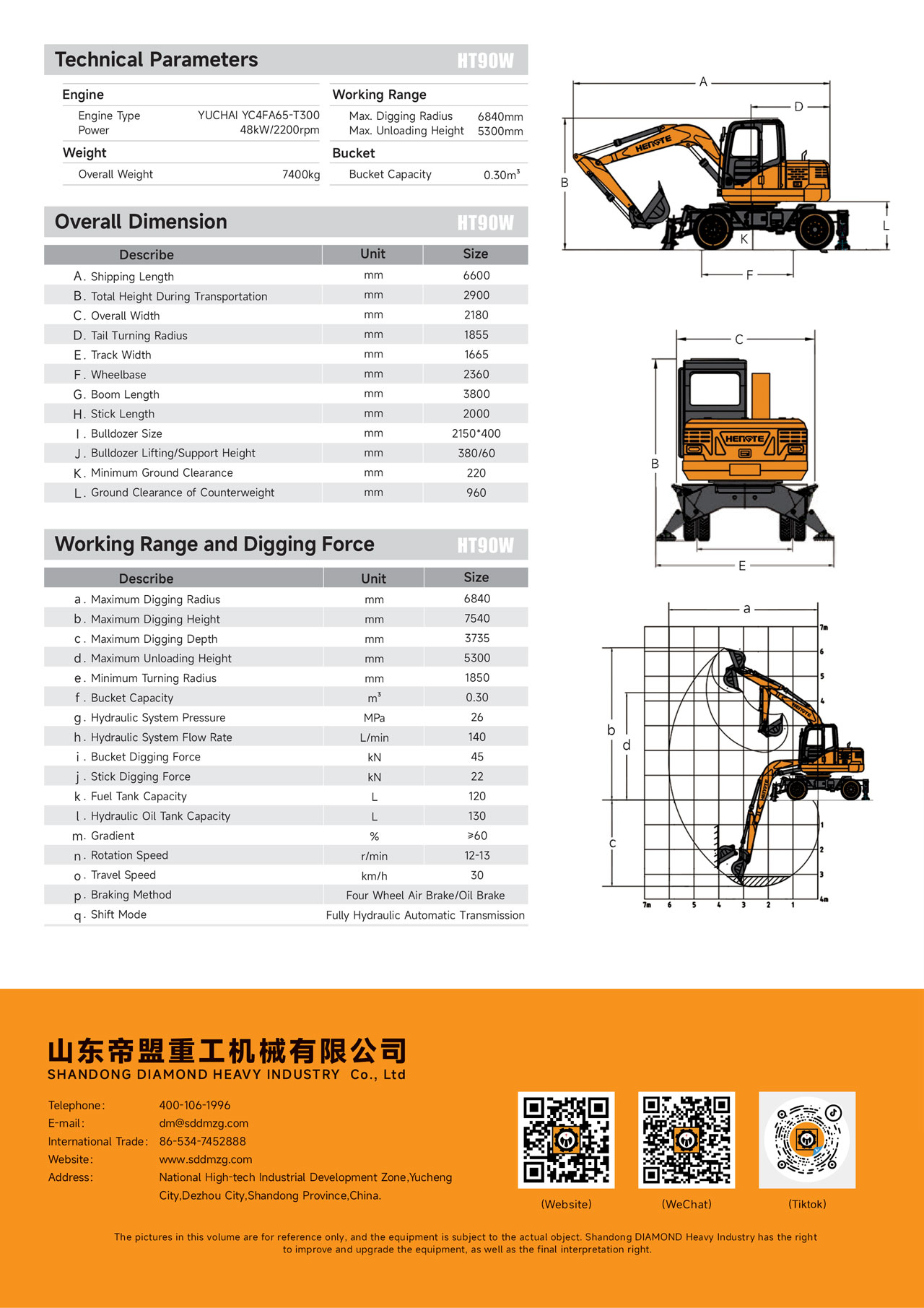

Basic parameters
Brand:HENGTEVehicle model:HT90W
Engine model:YCF3065-T480(IV)Engine power:48kW/2200rpm
Engine model:YC4FA65-T300(Export)Engine power:48kW/2200rpm
Bucket capacity:0.30m³Maximum excavation height:7540mm
Overall weight:7400kgMaximum unloading height:5300mm
Size specifications
Shipping length :6600mmShipping lheight :

2900mm

Overall width :2180mmTurret height:1930mm
Boom length:3800mmStick length:2000mm
Rear tail turning radius:1855mmTrack width:1665mm
Wheelbase:2360mmMinimum ground clearance:220mm
Scope of work
Maximum excavation radius:6840mmMaximum excavation height:7540mm
Maximum excavation depth:3735mmMaximum unloading height:5300mm
Dipper arm digging force:22knBucket digging force :45kn
Bucket capacity:0.30m³Maximum walking speed:30km/h
Gradient :≥60%Rotation speed:12-13r/min
Hydraulic system pressure:26MPaHydraulic system flow rate:140L/min
Fuel tank capacity:120LHydraulic oil tank capacity:130L

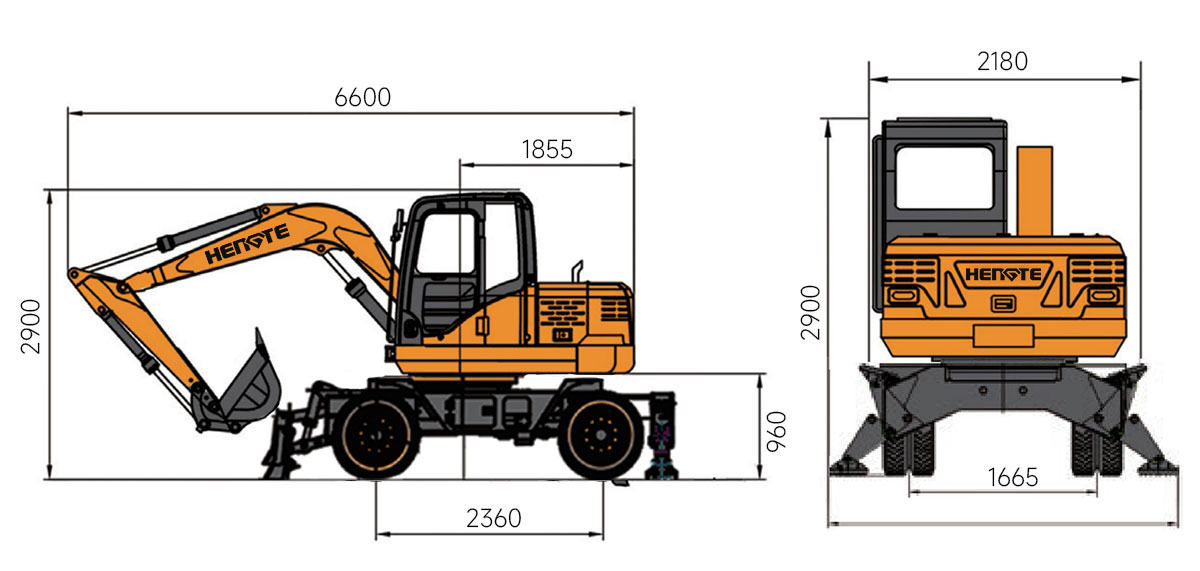

Parameter specification diagram (unit: mm)

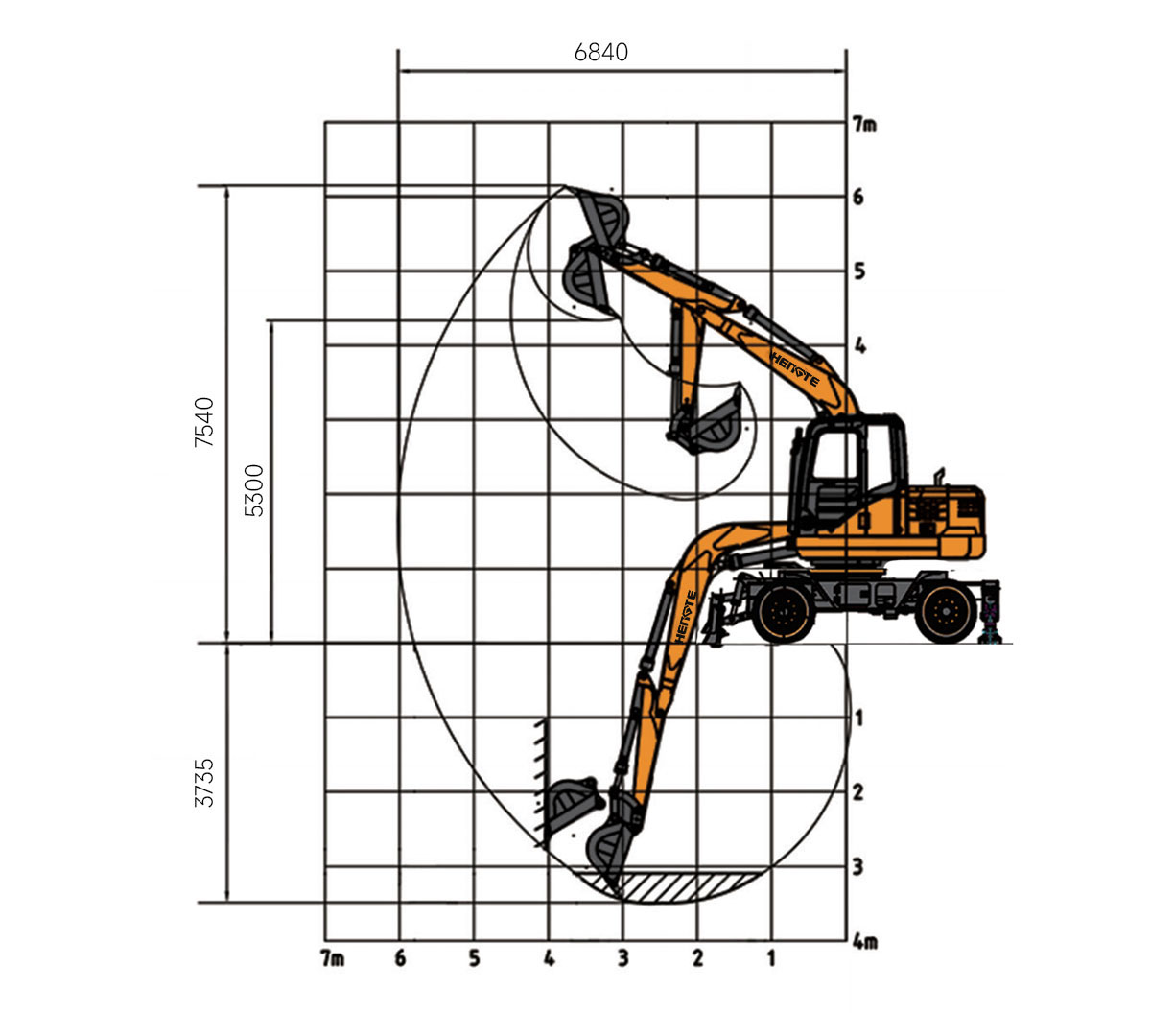

Diagram of homework scope (unit: mm)
由于技术不断更新进步,技术参数及配置与实物差异之处以交机实物为准;另,图片上的机器可能包括附加设备。

Construction cases
