Engine:CUMMINS 6BTA5.9-C180-Ⅱ

Bucket capacity:0.40m³

Engine power:132kw/2200rpm

Working weight:23000KG

Free Consultation:86-534-7452888

product details
configuration parameter
Construction case
Online inquiry

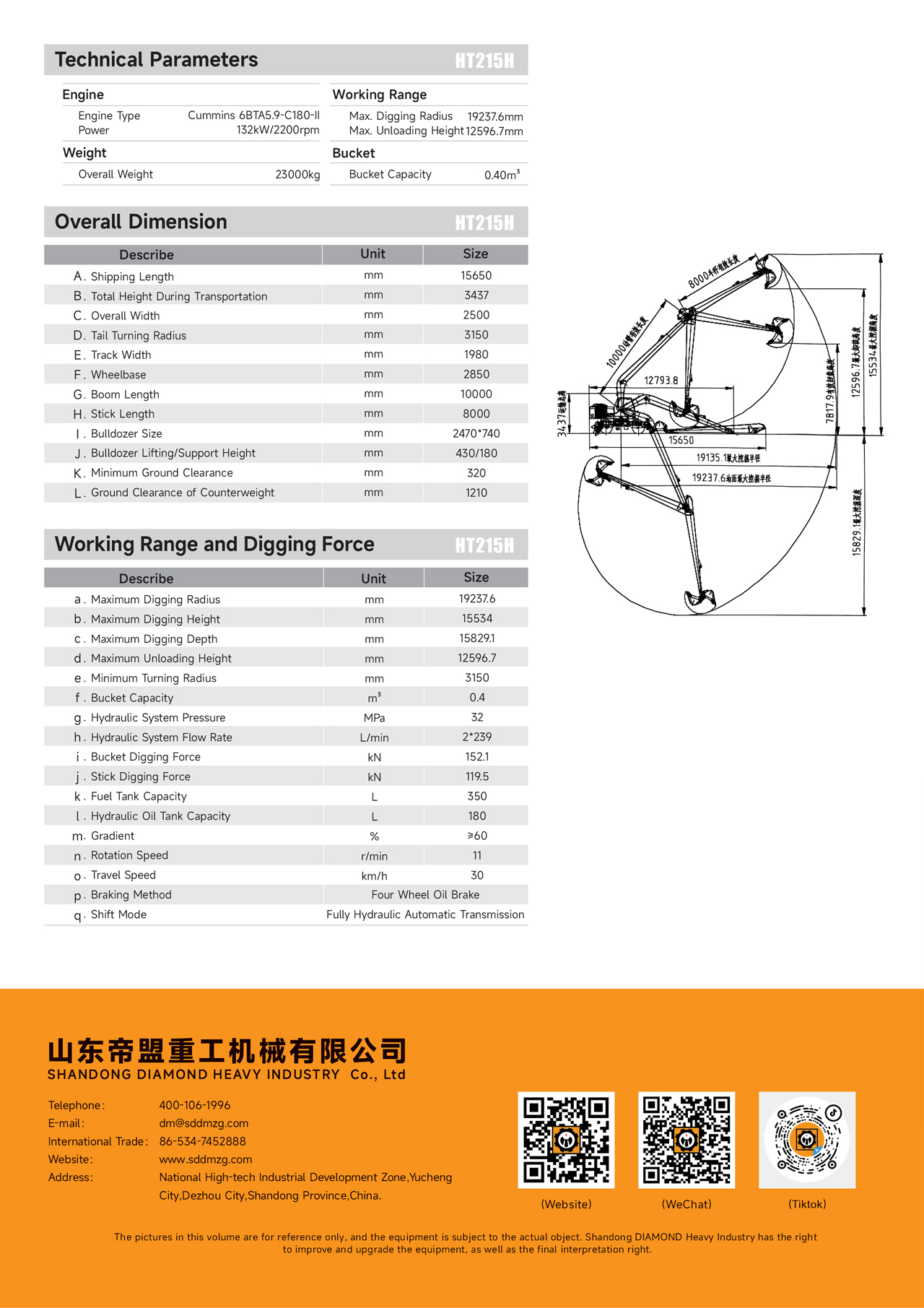

Basic parameters
Brand:HENGTEVehicle model:HT215H
Engine model:6BTA5.9-C180-ⅡEngine power:132kw/2200rpm
Maximum excavation radius:19237.6mmMaximum unloading height:12596.7mm
Overall weight23000kgBucket capacity:0.40m³
Size specifications
Shipping length :15650mmShipping height :3437mm
Overall width :2500mmTail turning radius :3150mm
Boom length:1000mmStick length:800mm
Track width:1980mmWheelbase:2850mm
Turntable ground clearance:1240mmGround clearance of rear axle:340mm
Fuel tank capacity:350LHydraulic oil tank capacity:180L
Scope of work and excavation force
Maximum excavation radius:19237.6mmMaximum excavation height:15534mm
Maximum excavation depth:15829.1mmMaximum unloading height:12596.7mm
Bucket digging force :152.1knDipper arm digging force:119.5kn
Bucket capacity:0.40m³Hydraulic system flow rate2*239L/min
Maximum walking speed on highways:30km/hClimbing ability:≥60%

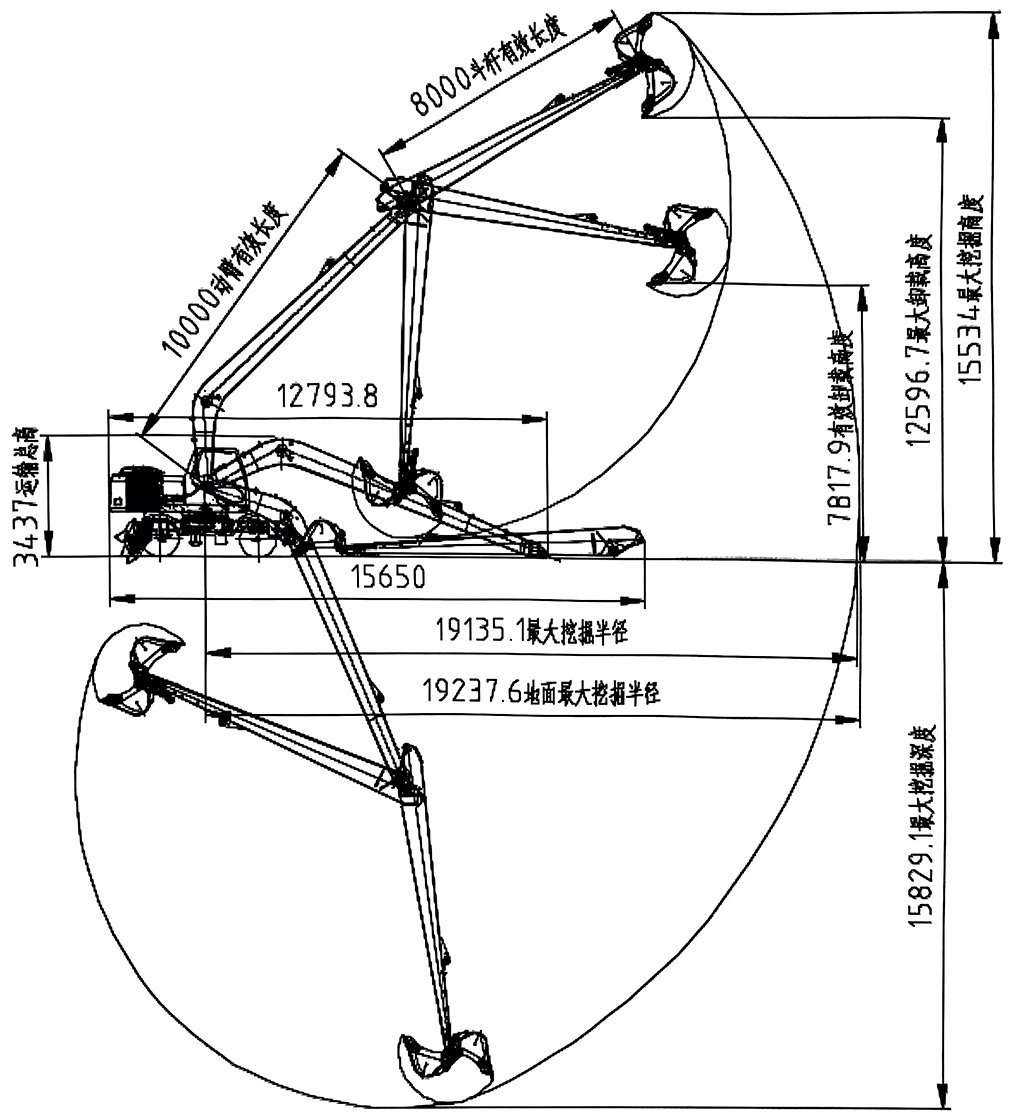

Parameter specification diagram (unit: mm)
Diagram of homework scope (unit: mm)
