    HomePage/Excavator/Wheeled grabbing machine
HT135W-G PLUS
HT135W-G PLUS

Engine：YC4FA85-T300

Power：62.5kw/2200rpm

Overall Weight：9880kg

Maximum Grabbing Weight：1800kg

Applicable Working Conditions：微信截图_20230311105702.png


Free Consultation：86-534-7452888

Browse the brochure Order Consultation
product details
configuration parameter
Construction case
Online inquiry

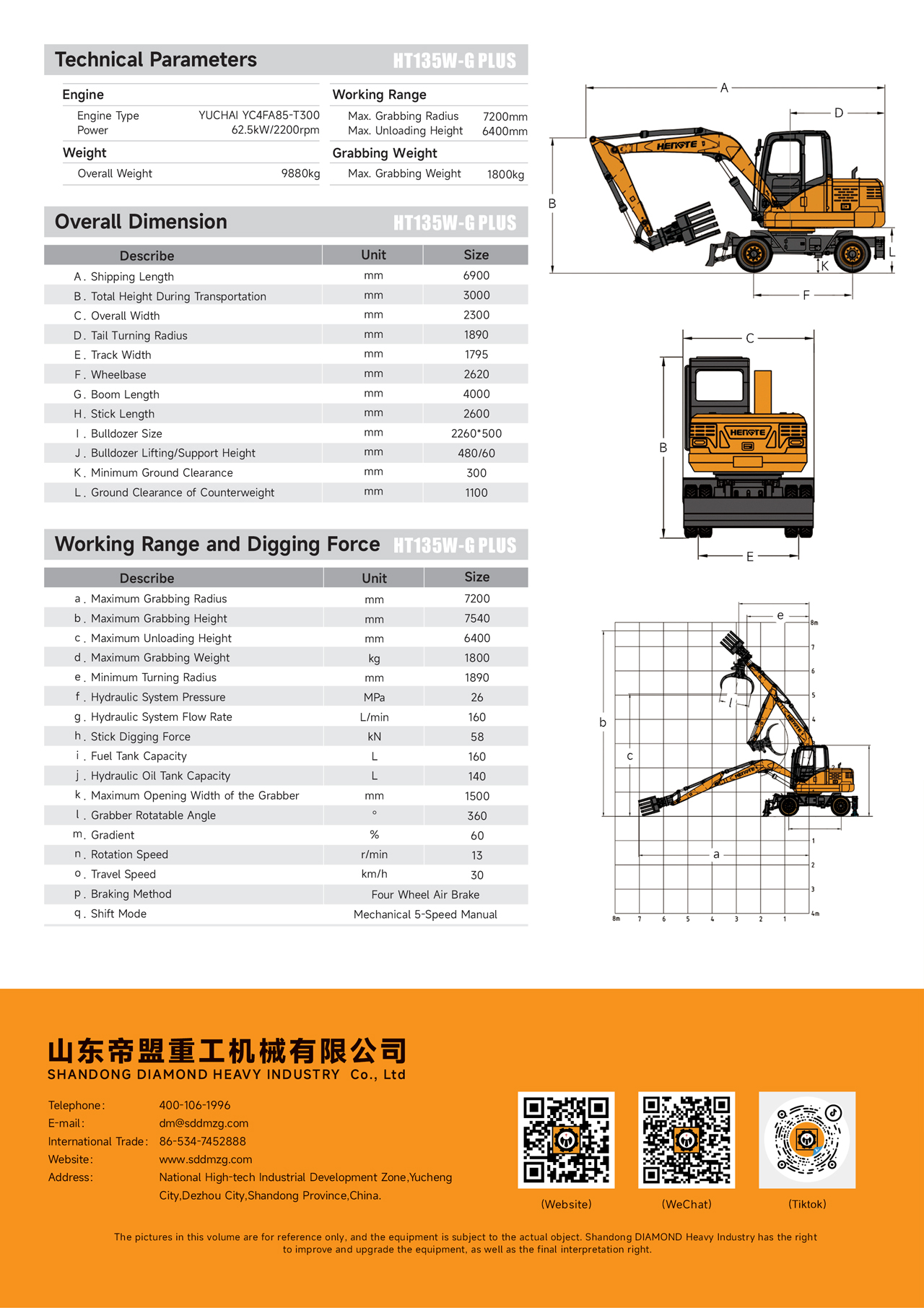

Technical Parameters
Brand：HENGTEModel：HT135W-G PLUS
Engine Type：YCF3085-T480(IV)Engine Power：62.5kw/2200rpm
Engine Type：YC4FA85-T300(Export)Engine Power：62.5kw/2200rpm
Maximum Grabbing Weight：1800(kg)Maximum Grabbing Height：7540mm
Overall Weight：9880(kg)Maximum Unloading Height：6400mm
Overall Dimension
Shipping Length ：6900mmShipping Height ：3000mm
Overall Width ：2300mmGround Clearance of Counterweight：1890mm
Boom Length：4000mmStick Length：2600mm
Maximum Opening Width of Grabber：1500mmMinimum Opening Width for Grabber：55mm
Grabber Rotatable Angle：360°Tail Turning Radius：1890mm
Track Width：1795mmWheelbase：2620mm
Hydraulic Oil Tank Capacity：140LFuel Tank Capacity：160L
Transmission Ground Clearance：300mm
Working Range and Digging Force
Maximum Grabbing Height：7540mmMaximum Unloading Height：6400mm
Maximum Grabbing Range：7200mmMinimum Turning Radius：1890mm
Maximum Grabbing Weight：1800kgOverall Weight：9880kg
Rotation Speed：13r/minTravel Speed：30km/h
Gradient ：≥60%

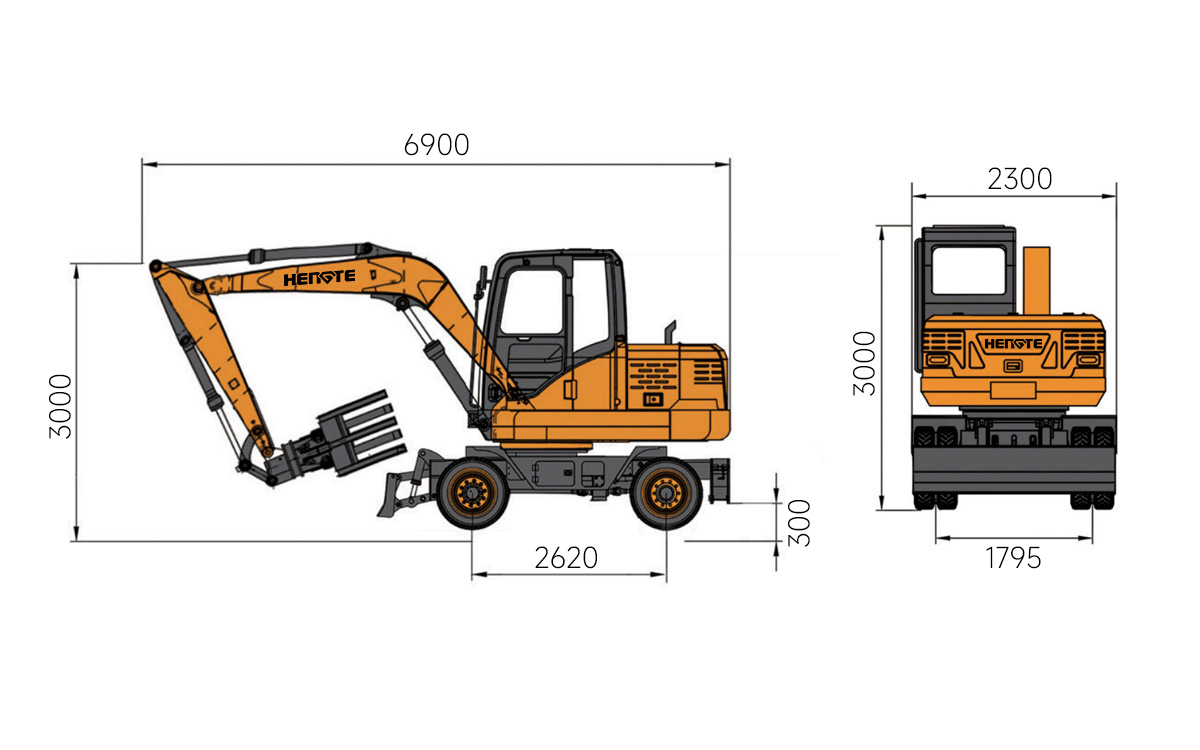

Diagram of  Specification Parameters (unit：mm)
A1 - X.jpg

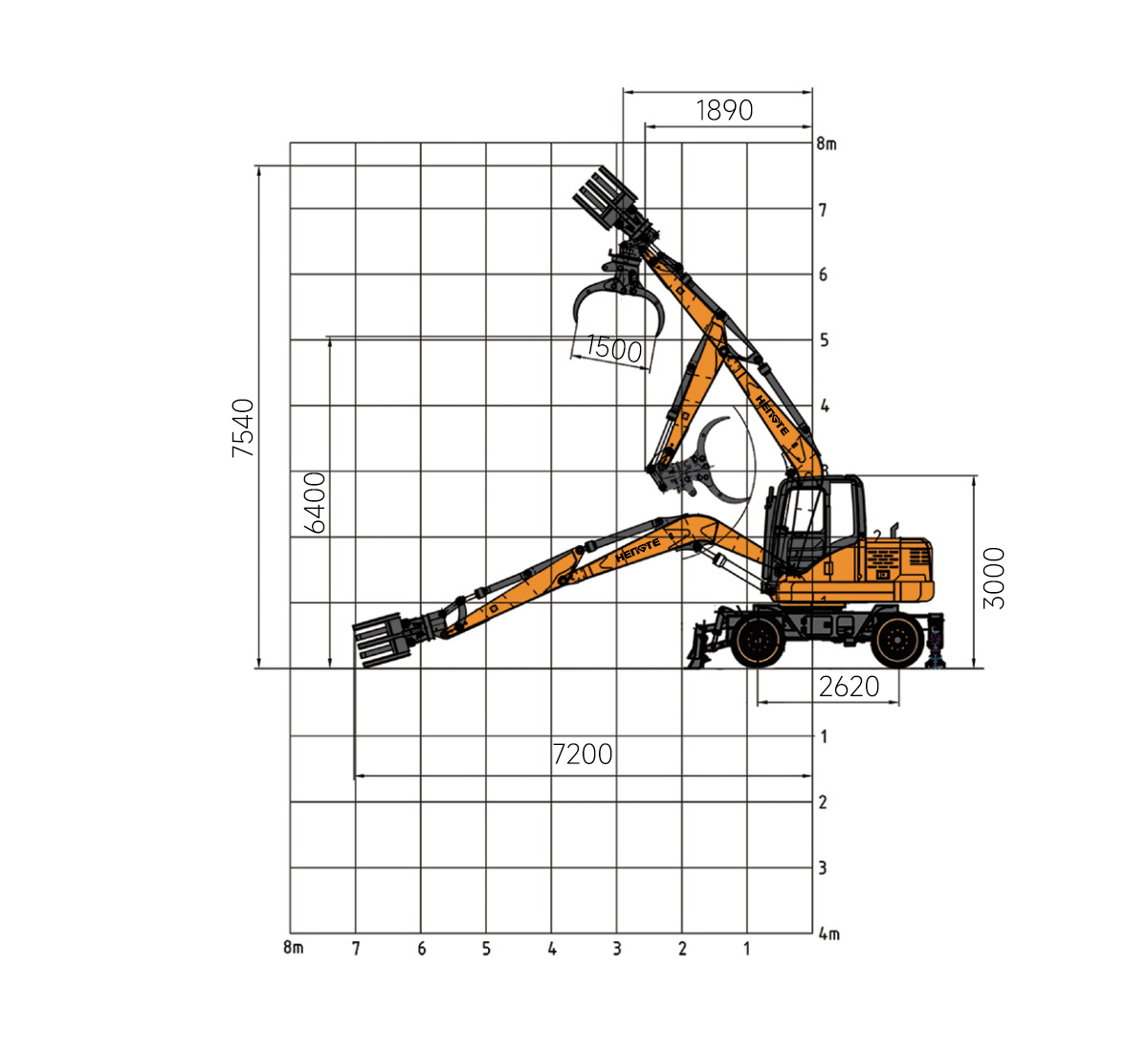

Diagram of Working Range (unit：mm)
A2 -X.jpg

Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine in the picture may include additional equipment.
