Engine:B3.9CS4 150C(IV)
Power:110kw/2500rpm
Bucket capacity:0.60m³
Working weight:14000KG
Applicable working conditions:
The HT155W excavator is a new generation fully hydraulic tire excavator independently developed by Emgrand Heavy Industries. It adopts a high-power and low fuel consumption branded engine, ensuring the strong power and power reserve of the entire machine; The precise matching between the efficient hydraulic system and the bridge box ensures the arbitrary switching between working and walking states; The hydraulic system of the entire machine is matched with imported hydraulic components, which have the characteristics of high reliability, genuine price, safety and environmental protection, comfort and convenience. At the same time, various special configurations can be provided to meet the needs of different countries and customers.
基础参数 | |||
---|---|---|---|
Brand: | HENGTE | Vehicle model: | HT155W |
Engine model: | B3.9CS4 150C(IV) | Engine power: | 110kw/2500rpm |
Engine model: | QSB3.9-C125(出口) | Engine power: | 93kw/2200rpm |
Maximum excavation radius: | 8060mm | Maximum unloading height: | 6300mm |
Overall weight: | 14000kg | Bucket capacity: | 0.60m³ |
Size specifications | |||
---|---|---|---|
Shipping length : | 7900mm | Shipping height : | 3255mm |
Overall width : | 2580mm | Tail turning radius : | 2395mm |
Turntable width: | 2500mm | Track width: | 1900mm |
Wheelbase: | 2600mm | Boom length: | 4600mm |
Stick length: | 2200mm | Bulldozer height: | 590mm |
Bulldozing board width: | 2500mm | Bulldozer lifting height: | 450mm |
Bulldozing plate support height: | 110mm |
Scope of work and excavation force | |||
---|---|---|---|
Maximum excavation radius: | 8060mm | Maximum excavation height: | 8700mm |
Maximum excavation depth: | 4865mm | Maximum unloading height: | 6300mm |
Hydraulic system pressure: | 32MPa | Hydraulic system flow rate: | 2*130L/min |
Bucket digging force : | 85kn | Dipper arm digging force: | 53kn |
Bucket capacity: | 0.60m³ | Fuel tank capacity: | 220L |
Hydraulic oil tank capacity: | 180L | Gradient : | ≥60% |
Rotation speed: | 13-14r/min | Maximum walking speed on highways: | 30km/h |

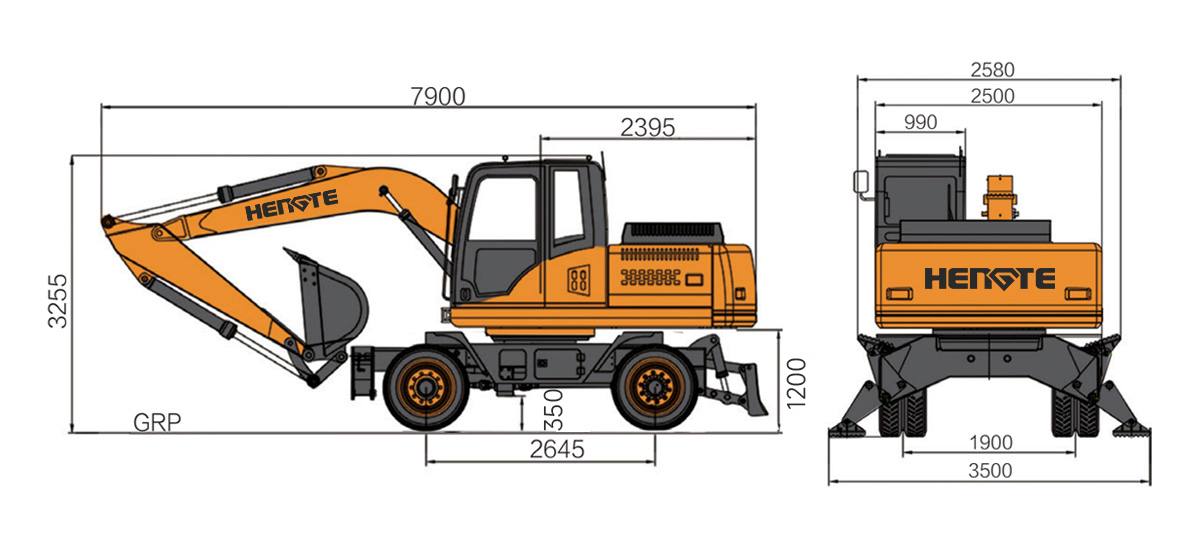

Parameter specification diagram (unit: mm) | |||
---|---|---|---|

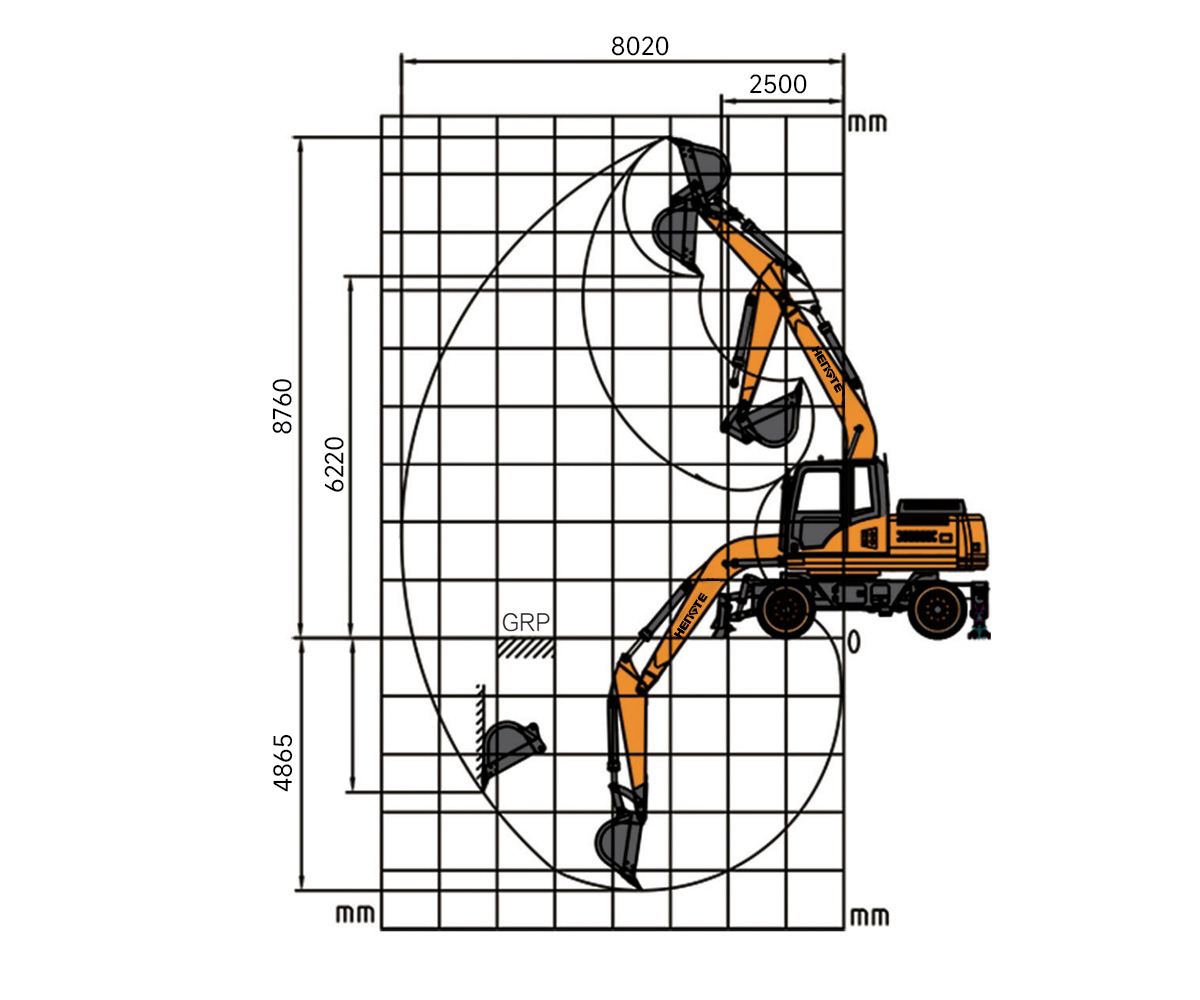

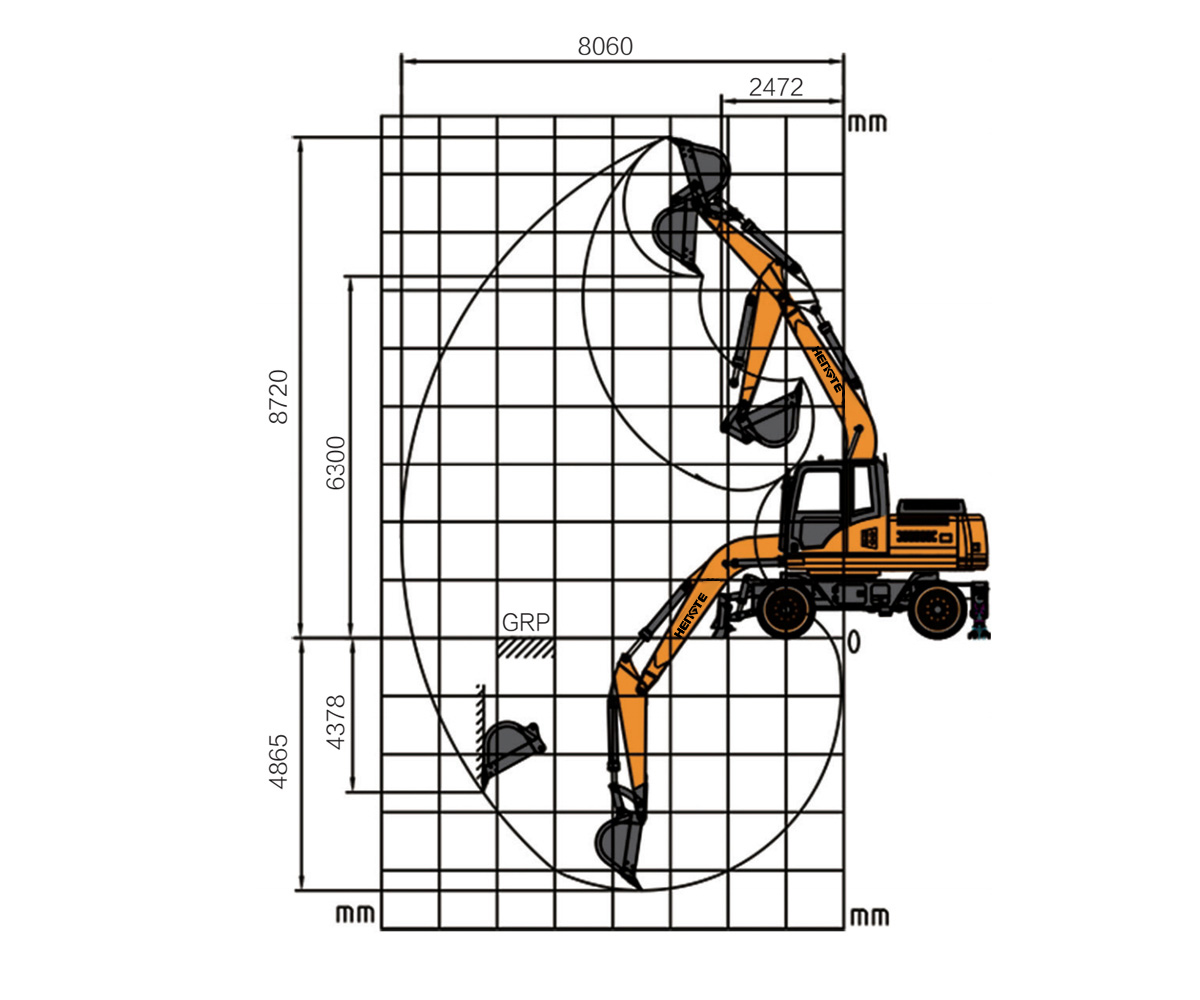

Diagram of homework scope (unit: mm) | |||
---|---|---|---|
由于技术不断更新进步,技术参数及配置与实物差异之处以交机实物为准;另,图片上的机器可能包括附加设备。 |
