HT35G
HT35G

Engine:YANMAR 3TNV88F-ESSY

Engine power:18.2kW/2200rpm

Bucket capacity:0.12m³

Working weight:3600kg


Free Consultation:86-534-7452888

product details
configuration parameter
Construction case
Online inquiry





Configuration parameter

Basic parameters
BrandHENGTEVehicle model:HT35G
Engine model:YANMAR 3TNV88F-ESSYEngine power:18.2kW/2200rpm
Maximum excavation radius:5465mmMaximum unloading height:3460mm
Overall weight:3600kgBucket capacity:0.12m³
Size specifications
Shipping length :4920mmShipping height :2550mm
Overall width :1720mmTail turning radius :860mm
Turntable width:1550mmTrack length:2155mm
Track gauge:1420mmtrack width :300mm
Minimum ground clearance:295mmGround clearance of counterweight:590mm
Scope of work and excavation force
Maximum excavation radius:5465mmMaximum excavation height:4855mm
Maximum excavation depth:3105mmMaximum unloading height:3460mm
Hydraulic system pressure:24.5MPaHydraulic system flow rate:88L/min
Bucket digging force :30.5knDipper arm digging force:18.5kn
Bucket capacity:0.12m³Walking speed:(2.4/4.5)km/h

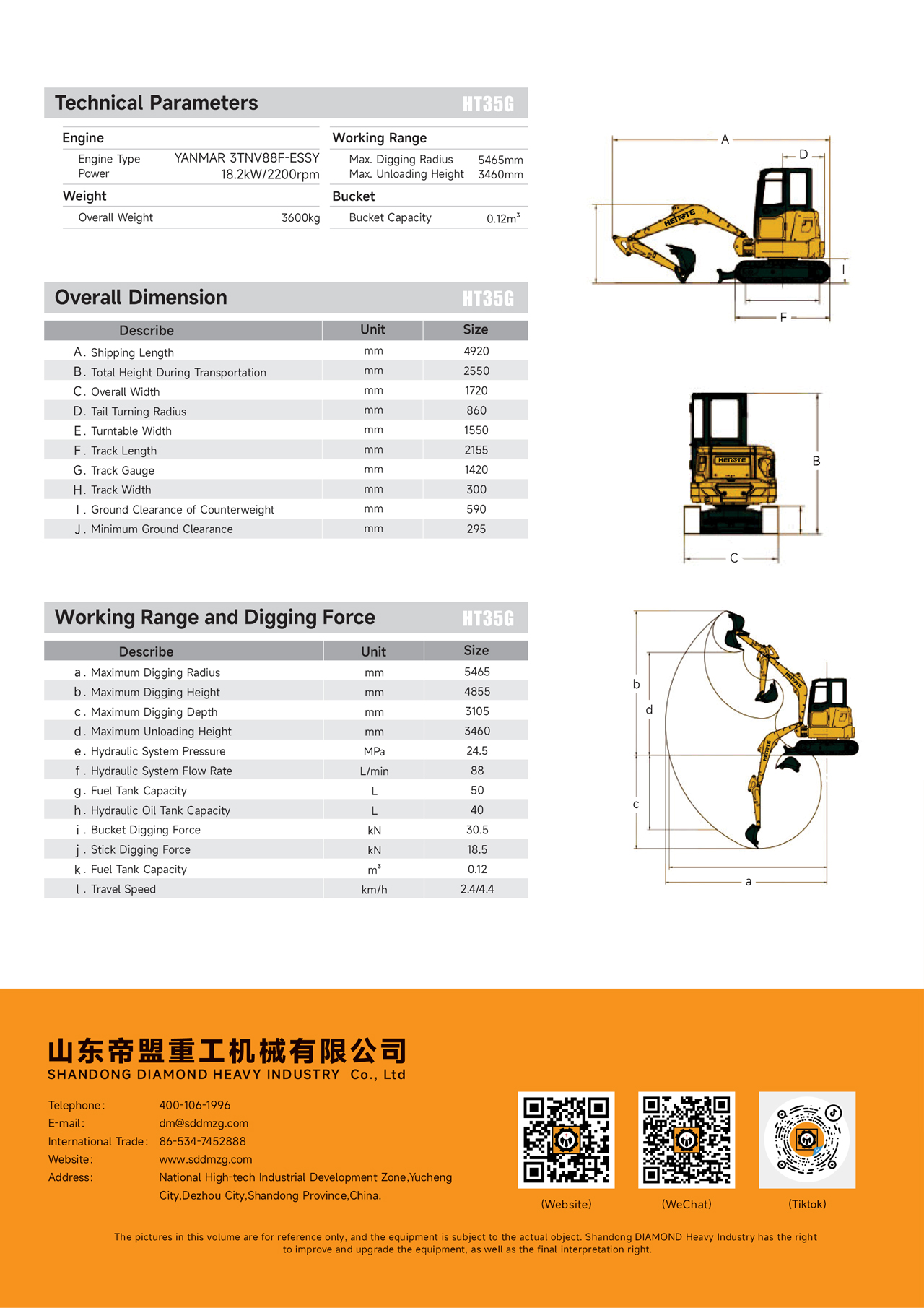

Parameter specification diagram (unit: mm)
Diagram of homework scope (unit: mm)
由于技术不断更新进步,技术参数及配置与实物差异之处以交机实物为准;另,图片上的机器可能包括附加设备。
