HT175W
HT175W
HT175W
HT175W
HT175W

Engine:6BTA5.9-C180-II

Power:132kw/2200rpm

Bucket Capacity:0.70m³

Overall Weight:16100kg



Free Consultation:86-534-7452888

product details
configuration parameter
Construction case
Online inquiry

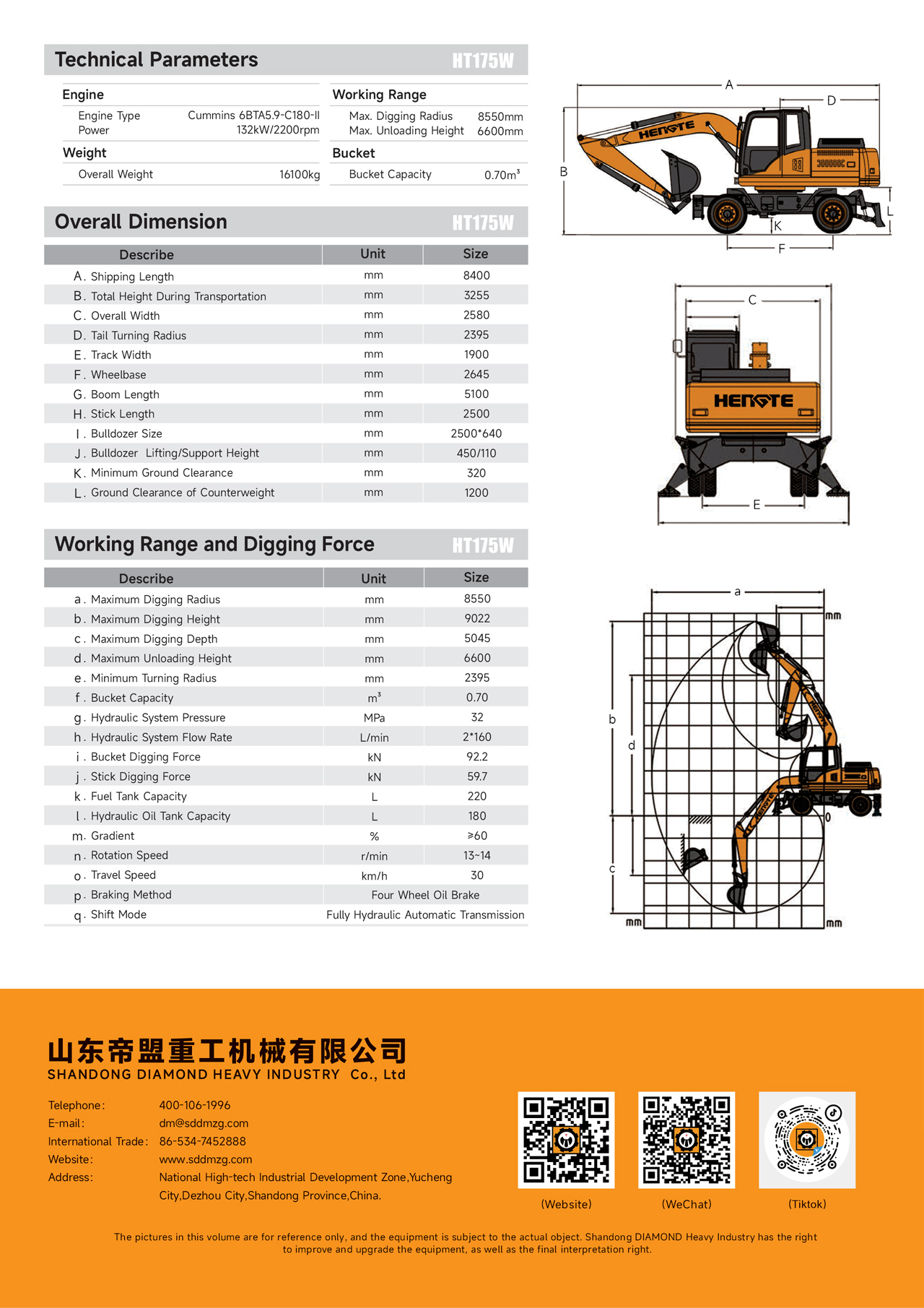

Technical Parameters
Brand:HENGTEModel:HT175W
Engine Type:6BTA5.9-C180Engine Power:132kw/2200rpm
Maximum Digging Radius:8550mmMaximum Unloading Height:6600mm
Overall Weight:16100kgBucket Capacity:0.70m³
Overall Dimension
Shipping Length :8400mmTotal Height During Transportation3255mm
Overall Width :2580mmTail Turning Radius :2395mm
Turntable Width:2500mmTrack Width:1900mm
Wheelbase:2645mmBoom Length:5100mm
Stick Length:2500mmBulldozer Height:640mm
Bulldozing Board Width:2500mmBulldozer Lifting Height:450mm
Bulldozing Plate Support Height:100mm
Working Range and Digging Force
Maximum Digging Radius:8550mmMaximum Digging Height:9022mm
Maximum Digging Depth:5045mmMaximum Unloading Height:6600mm
Hydraulic System Pressure:32MPaHydraulic System Flow Rate:2*160L/min
Bucket Digging Force :92.2kn

Stick Digging Force:

59.7kn
Bucket Capacity:0.70m³Fuel Tank Capacity:220L
Hydraulic Oil Tank Capacity:180LGradient :≥60%
Rotation Speed:13-14r/minTravel Speed:30km/h

Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine in the picture may include additional equipment.
