Engine:CUMMINS 6BTA5.9-C180-Ⅱ

Engine power:132kw/2200rpm

Maximum radius grasping weight:2100kg

Working weight:25000KG

Free Consultation:86-534-7452888

product details
configuration parameter
Construction case
Online inquiry





Basic parameters
Brand:HENGTEVehicle model:HT215K
Engine model:6BTA5.9-C180-ⅡEngine power:132kw/2200rpm
Maximum radius grasping weight:2100(kg)Maximum snatch height:12997mm
Overall weight:25000(kg)Maximum unloading height9578mm
Size specifications
Shipping length :10050mmShipping height 3300mm
Overall width :2500mmTurret height:3150mm
Boom length:7000mmStick length:3700mm
Maximum opening width of snatch:2321mmMinimum opening width for snatching:55mm
Grab can rotate at an angle:360°Rear tail turning radius:2020mm
Track width:1980mmWheelbase:2850mm
Hydraulic oil tank capacity:180LFuel tank capacity:350L
Transmission ground clearance:320mm
Scope of work
Maximum snatch height:12997mmMaximum unloading height:9578mm
Maximum working range:12037mmMinimum turning radius:3150mm
Maximum radius grasping weight:2100kgOverall weight25000kg
Rotation speed:11r/minMaximum walking speed:28km/h
Gradient :≥60%

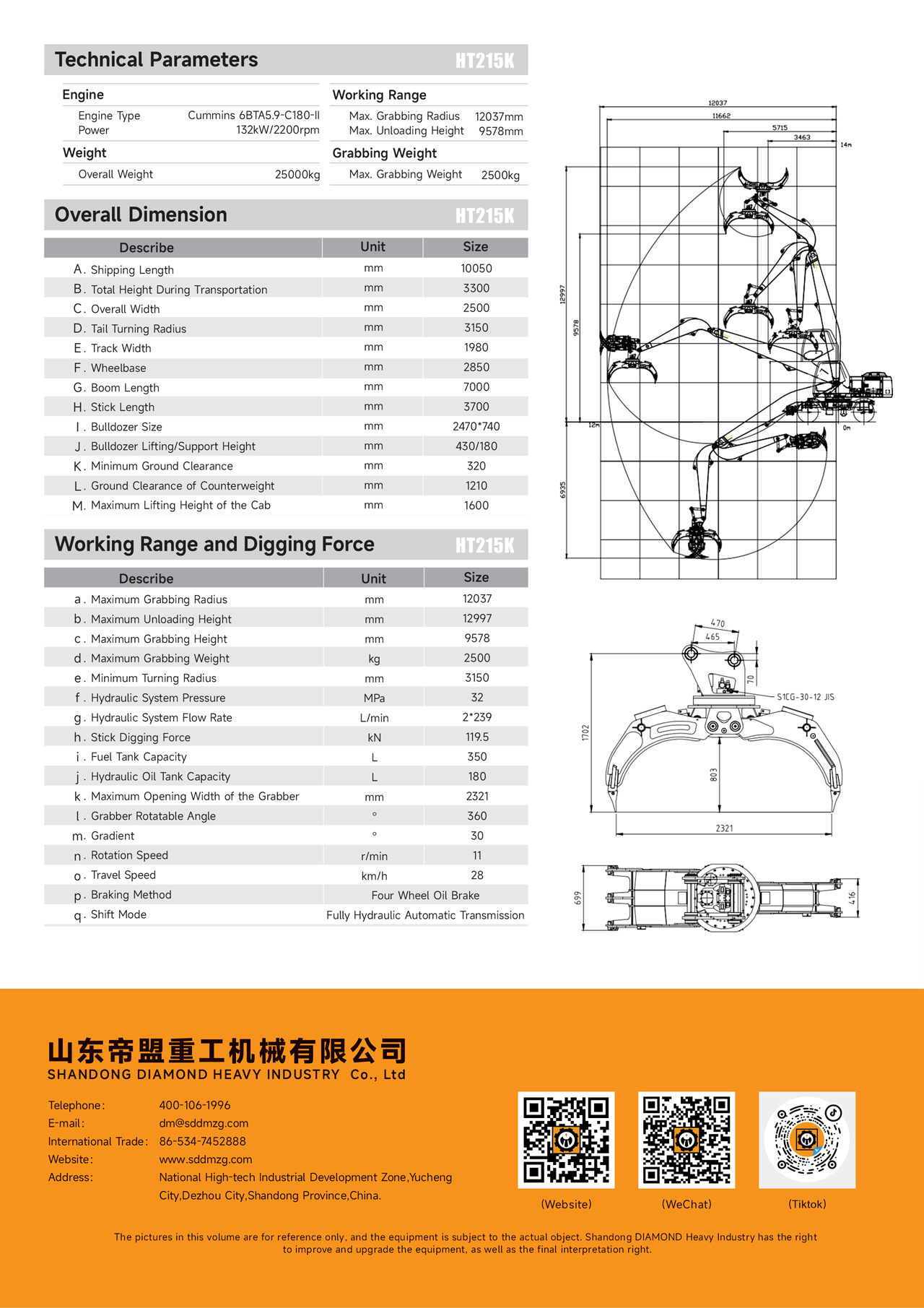

Parameter specification diagram(unit:mm)

Diagram of the scope of work(unit:mm)
