Product details
The HT150 excavator is a new generation fully hydraulic tracked excavator independently developed by Emgrand Heavy Industries. It adopts a high-power and low fuel consumption branded engine, ensuring the strong power and power reserve of the entire machine; It has the characteristics of high reliability, safety and environmental protection, comfort and convenience, and can provide various special configuration options to meet the needs of different countries and customers.
Bucket capacity:0.6m³
Engine power:93KM/2200rpm
Working weight:13500KG
Configuration parameter
Basic parameters | |||
---|---|---|---|
Brand: | HENGTE | Vehicle model: | HT150 |
Engine model: | QSB3.9-C125-30 | Engine power: | 93kw/2200rpm |
Maximum excavation radius: | 8160mm | Maximum unloading height: | 6150mm |
Overall weight: | 13670kg | Bucket capacity: | 0.60m³ |
Size specifications | |||
---|---|---|---|
Shipping length : | 7800mm | Shipping height : | 2900mm |
Overall width : | 2500mm | Tail turning radius : | 2400mm |
Turntable width: | 2490mm | Track length: | 3470mm |
Track gauge: | 1960mm | Number of track shoes * pitch: | 42*175mm |
track width : | 500mm | Ground clearance of counterweight: | 880mm |
Minimum ground clearance: | 420mm |
Scope of work and excavation force | |||
---|---|---|---|
Maximum excavation radius: | 8160mm | Maximum excavation height: | 8650mm |
Maximum excavation depth: | 5300mm | Maximum unloading height: | 6150mm |
Hydraulic system pressure: | 32MPa | Hydraulic system flow rate: | 2*130L/min |
Bucket digging force : | 85kn | Dipper arm digging force: | 53kn |
Bucket capacity: | 0.60m³ | Rotation speed: | 13-14r/min |
Walking speed: | 5km/h |

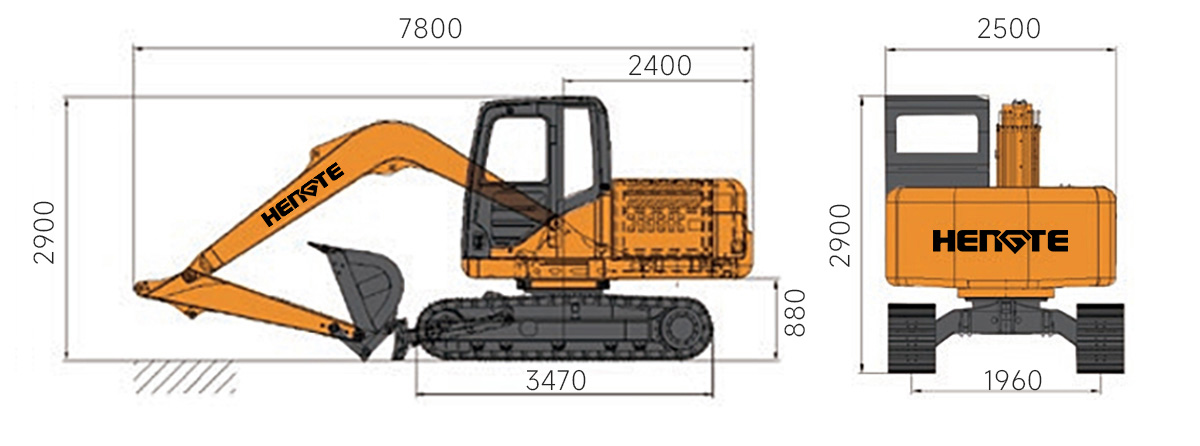

Parameter specification diagram (unit: mm) | |||
---|---|---|---|

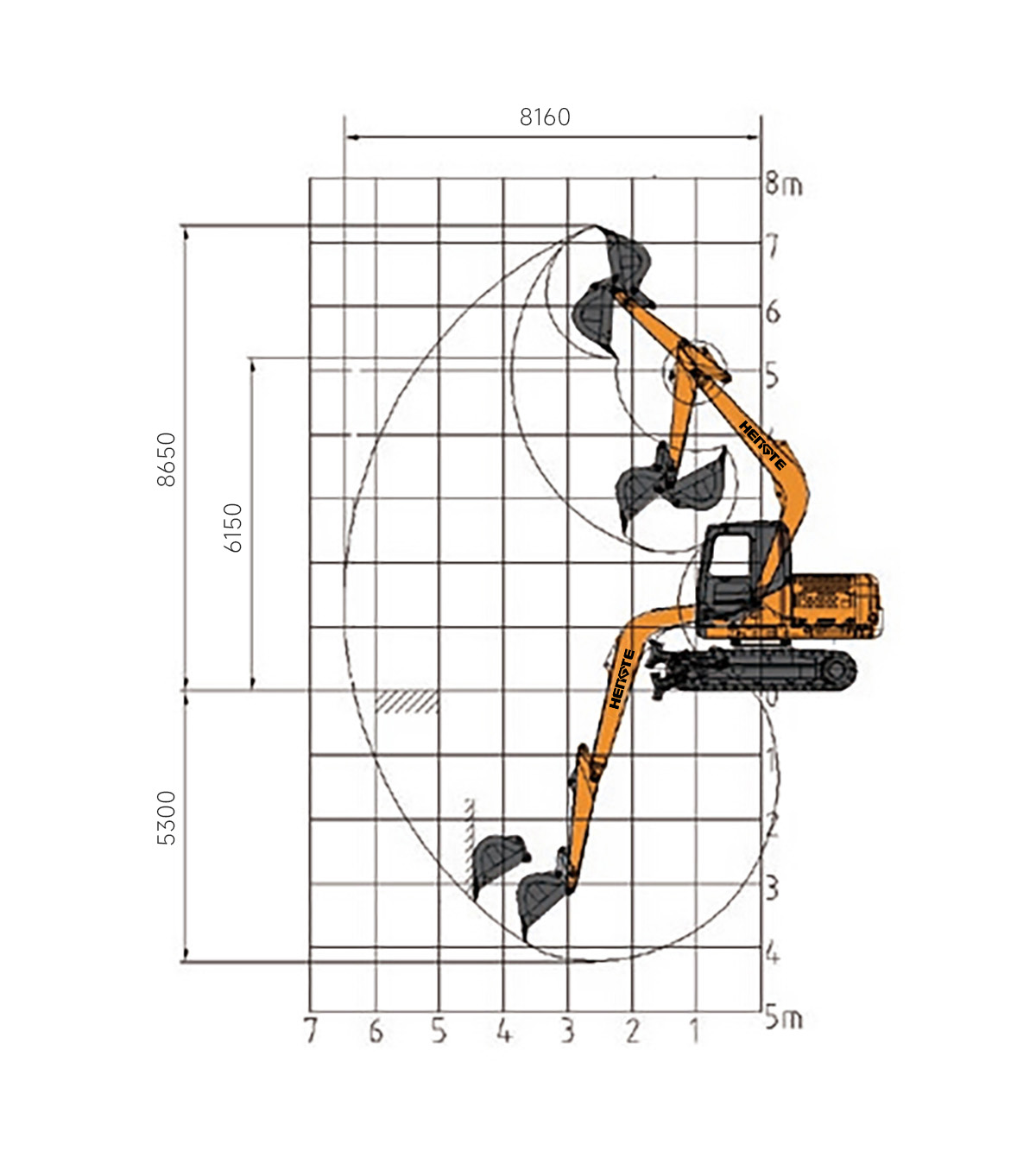

Diagram of homework scope (unit: mm) | |||
---|---|---|---|
由于技术不断更新进步,技术参数及配置与实物差异之处以交机实物为准;另,图片上的机器可能包括附加设备。 |
