Weight capacity:0.6m³

Engine power:93KM/2200rpm

Working weight:13400KG

Applicable working conditions:微信截图_20230311105702.png


免费咨询:86-534-7452888

产品详情
配置参数
施工案例
在线询价

Product details

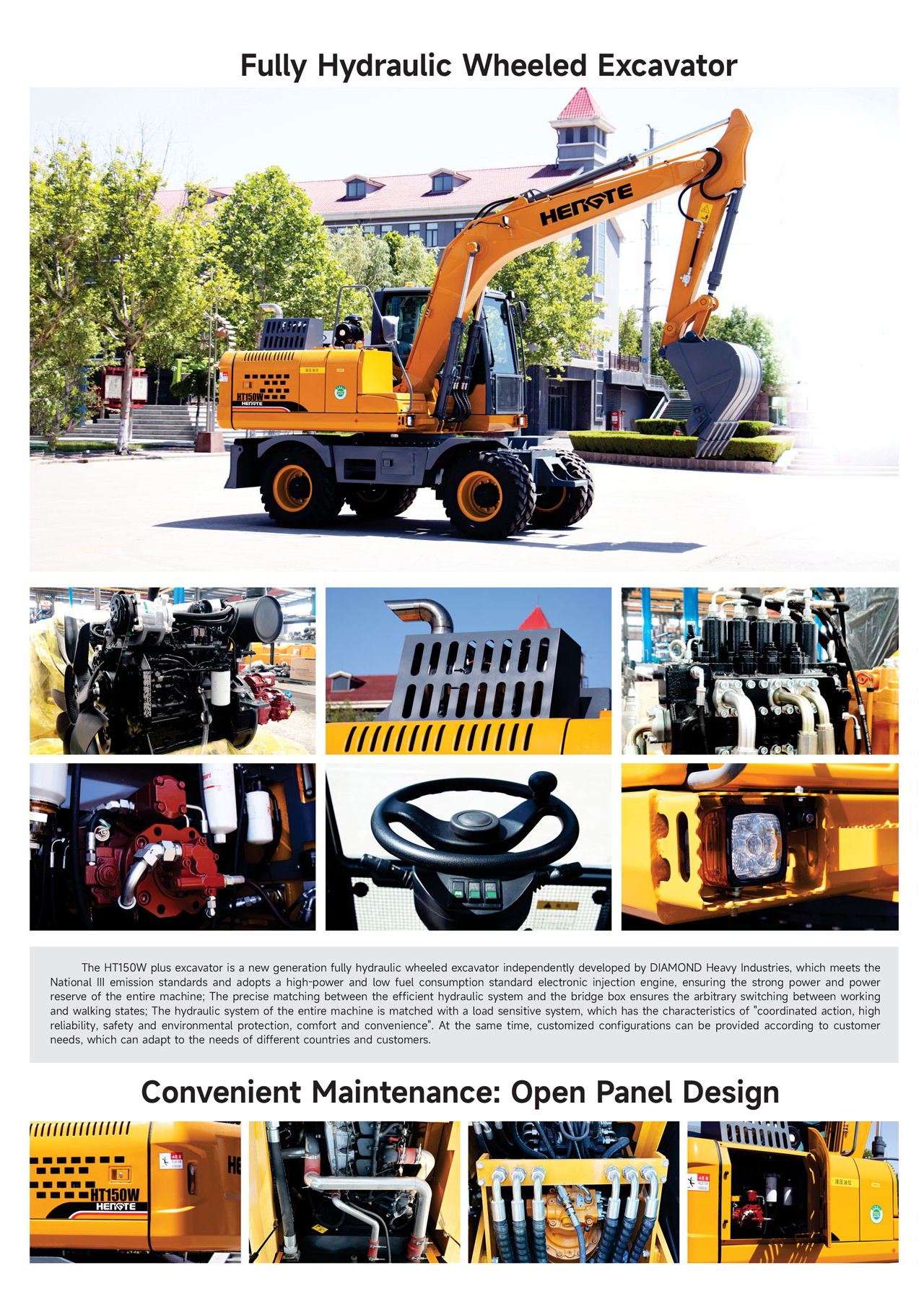

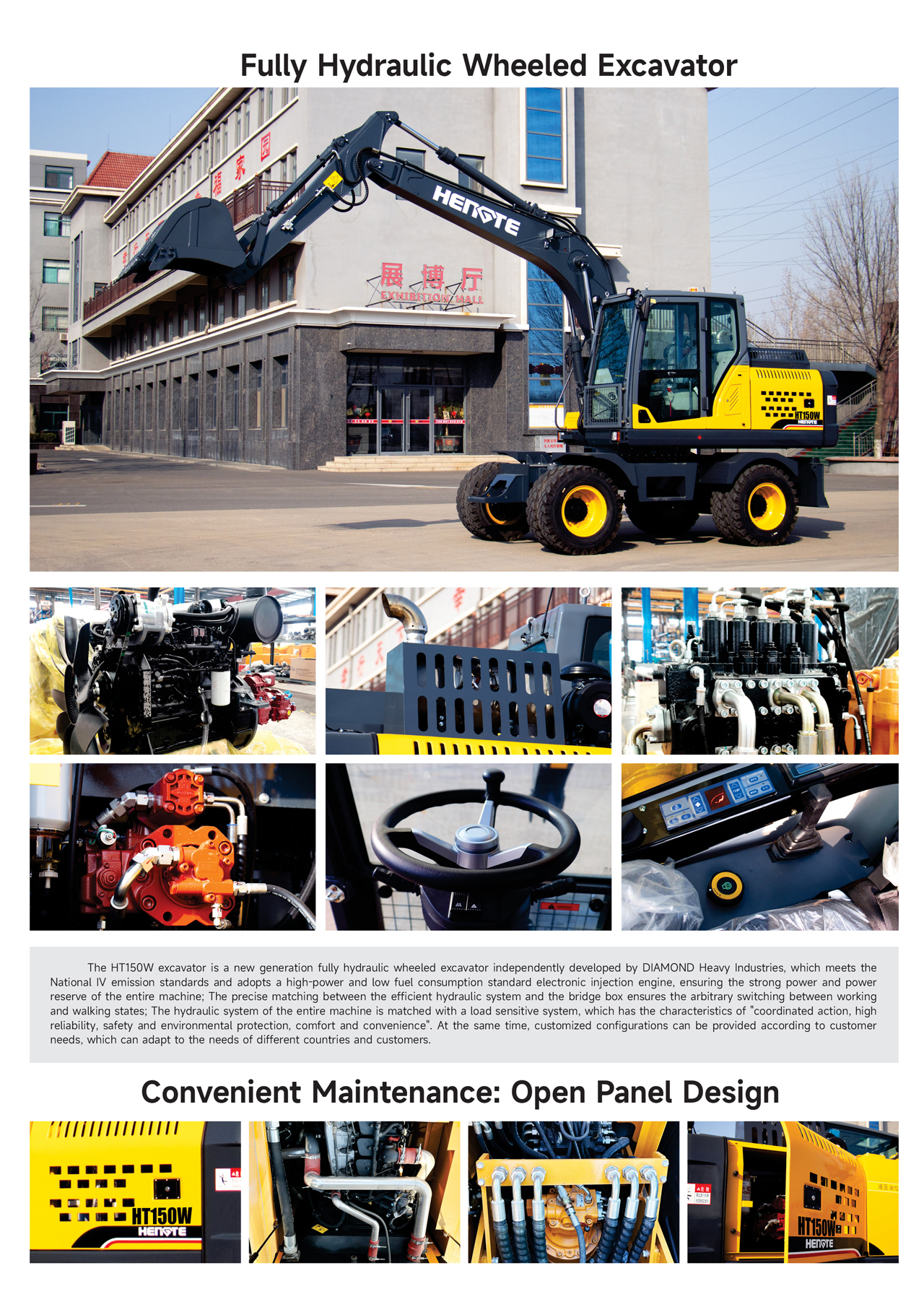

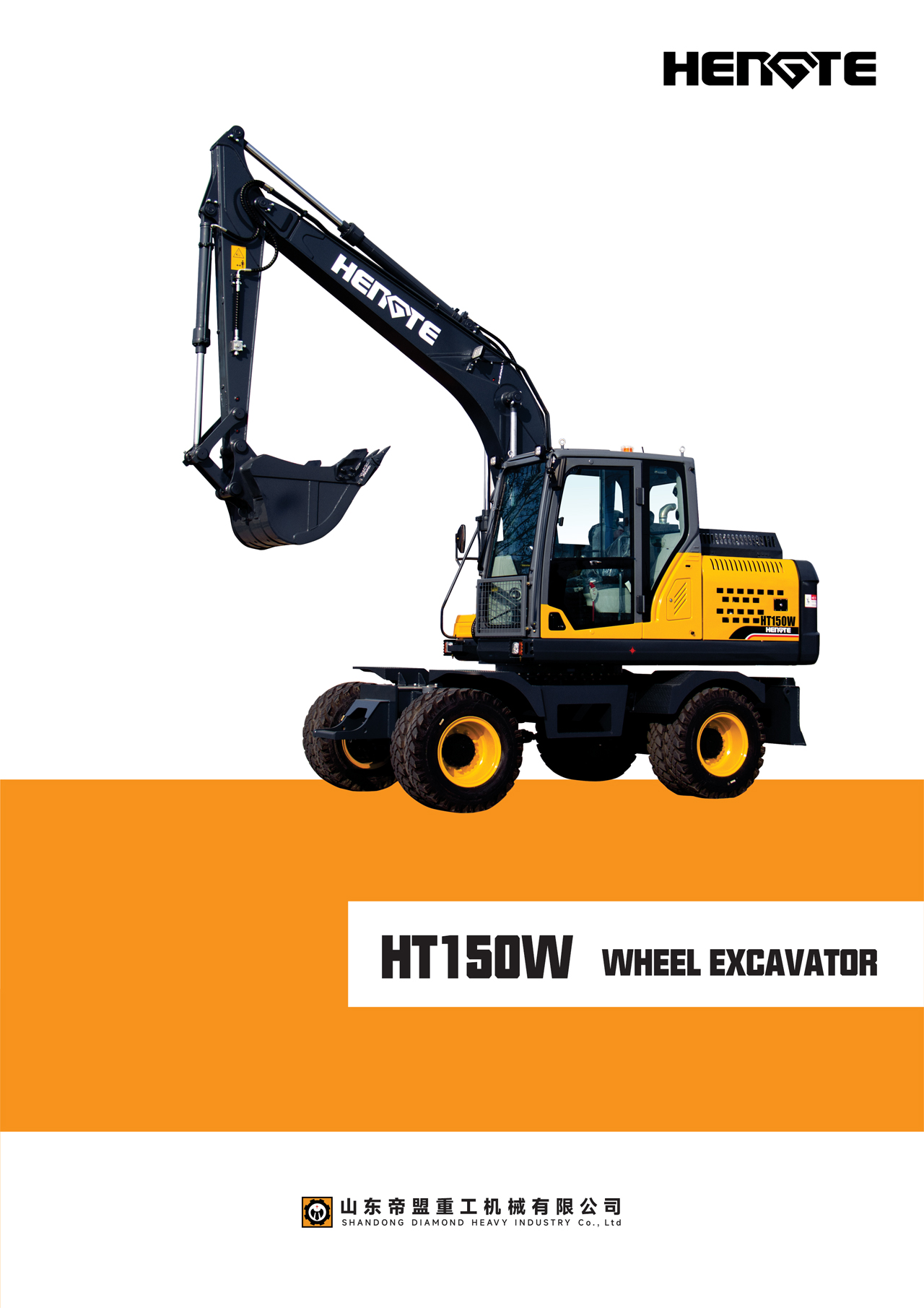

The HT150 excavator is a fully hydraulic wheeled excavator independently developed by Emgrand Heavy Industries. It adopts a brand engine with high power and low fuel consumption, ensuring the strong power and power reserve of the entire machine; The precise matching between the efficient hydraulic system and the bridge box ensures the arbitrary switching between working and walking states; The hydraulic system of the entire machine is matched with imported hydraulic components, which have the characteristics of high reliability, genuine price, safety and environmental protection, comfort and convenience. At the same time, various special configurations can be provided to meet the needs of different countries and customers.


Driver's cab - full view!

The newly designed driver's cabin increases the activity space by 15%, providing a wide field of view and excellent all-round view for the operator; Excellent sound insulation pads further reduce the noise level inside the driver's cabin; High quality insulated glass, complete with cigarette lighter, ashtray, cup holder, reading light, and various operation buttons arranged in a more user-friendly way, providing a more comfortable working environment.

Engine - Source of Power

The Cummins brand engine adopts the latest turbocharging fuel saving technology, which reduces fuel consumption by 10% compared to similar products. It has cleaner combustion performance and lower exhaust emissions, providing strong power and stable reliability.

Variable displacement piston pump - simple and not simple

The brand variable axial piston pump can provide precise flow control according to load requirements, match the real-time power of the engine, and achieve significant energy-saving effects.

Load sensitive multi way valve - well-organized

The load sensitive multi way valve, closely combined with the pipeline, can stably achieve multiple composite actions, thereby improving work efficiency.

Robot welding - uniform and more secure welding points

Lean manufacturing system, using CNC, laser, and plasma cutting for cutting materials; Robot welding and machining center processing ensure the machining accuracy and quality reliability of structural components.


Local features:

1. Fully hydraulic transmission driving (automatic transmission, more convenient);

2. Load sensitive system (smooth operation and more powerful);

3. Full view of the cab (high configuration and good visibility);

4. Multi functional operating system (joystick control, easy to operate);

5. High driving power, all wheel drive (faster, more stable)

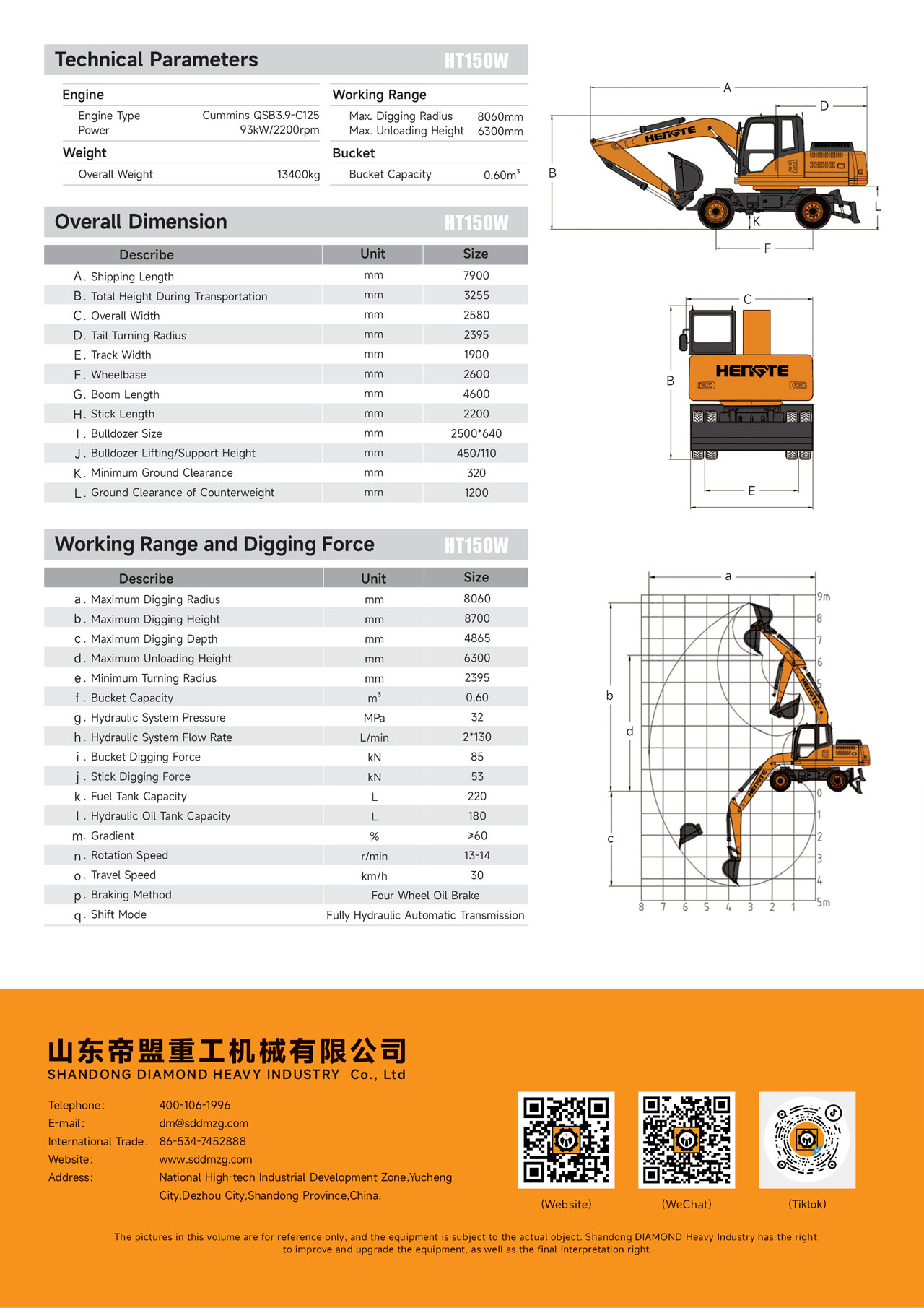

Configuration parameter

Basic parameters
Brand:HENGTE Vehicle model:HT150W
Engine model:QSB3.9-C125Engine power:93kw/2200rpm
Maximum excavation radius:8060mmMaximum unloading height:6300mm
Overall weight:13400kgBucket capacity:0.60m³
Size specifications
Shipping length :7900mmShipping height :3255mm
Overall width :2580mmTail turning radius :2395mm
Turntable width:/Track width:1900mm
Wheelbase:2600mmBoom length:4600mm
Stick length:2200mmBulldozer height:640mm
Bulldozing board width:2500mmBulldozer lifting height:450mm
Bulldozing plate support height:110mm
Scope of work and excavation force
 Maximum excavation radius:8060mmMaximum excavation height:8700mm
Maximum excavation depth:4865mmMaximum unloading height:6300mm
Hydraulic system pressure:32MPaHydraulic system flow rate:2*130L/min
Bucket digging force :85knDipper arm digging force:53kn
Bucket capacity:0.60m³Fuel tank capacity:220L
Hydraulic oil tank capacity:180LGradient :≥60%
Rotation speed:13-14r/minMaximum walking speed on highways:30km/h

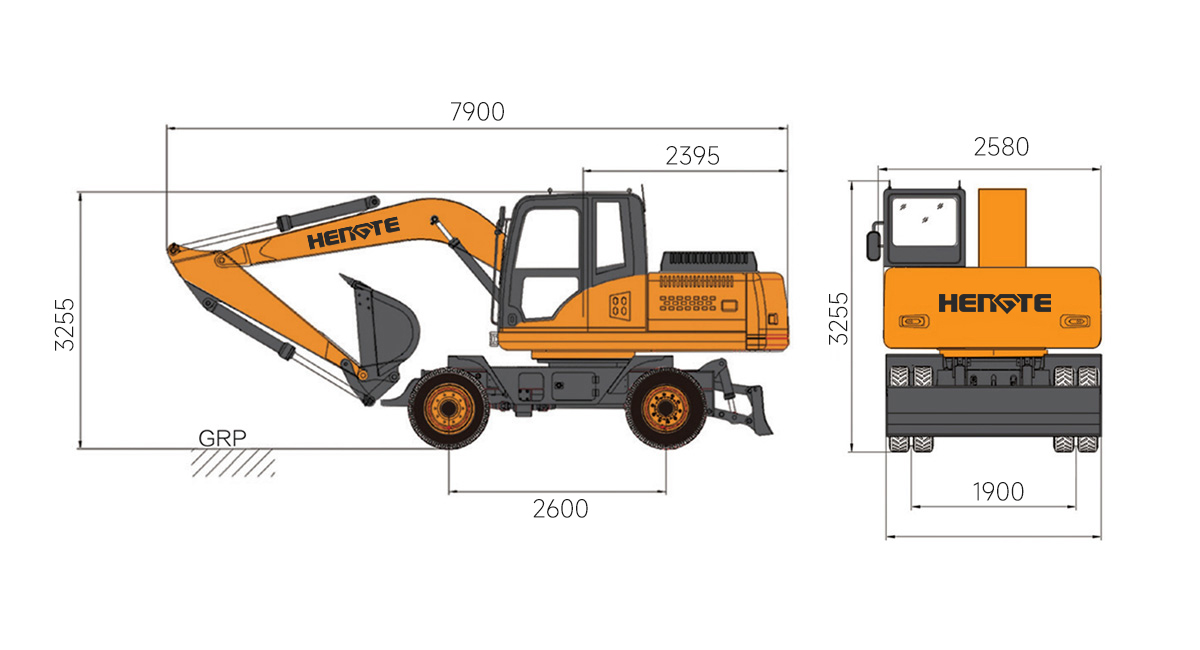

Parameter specification diagram(unit:mm)

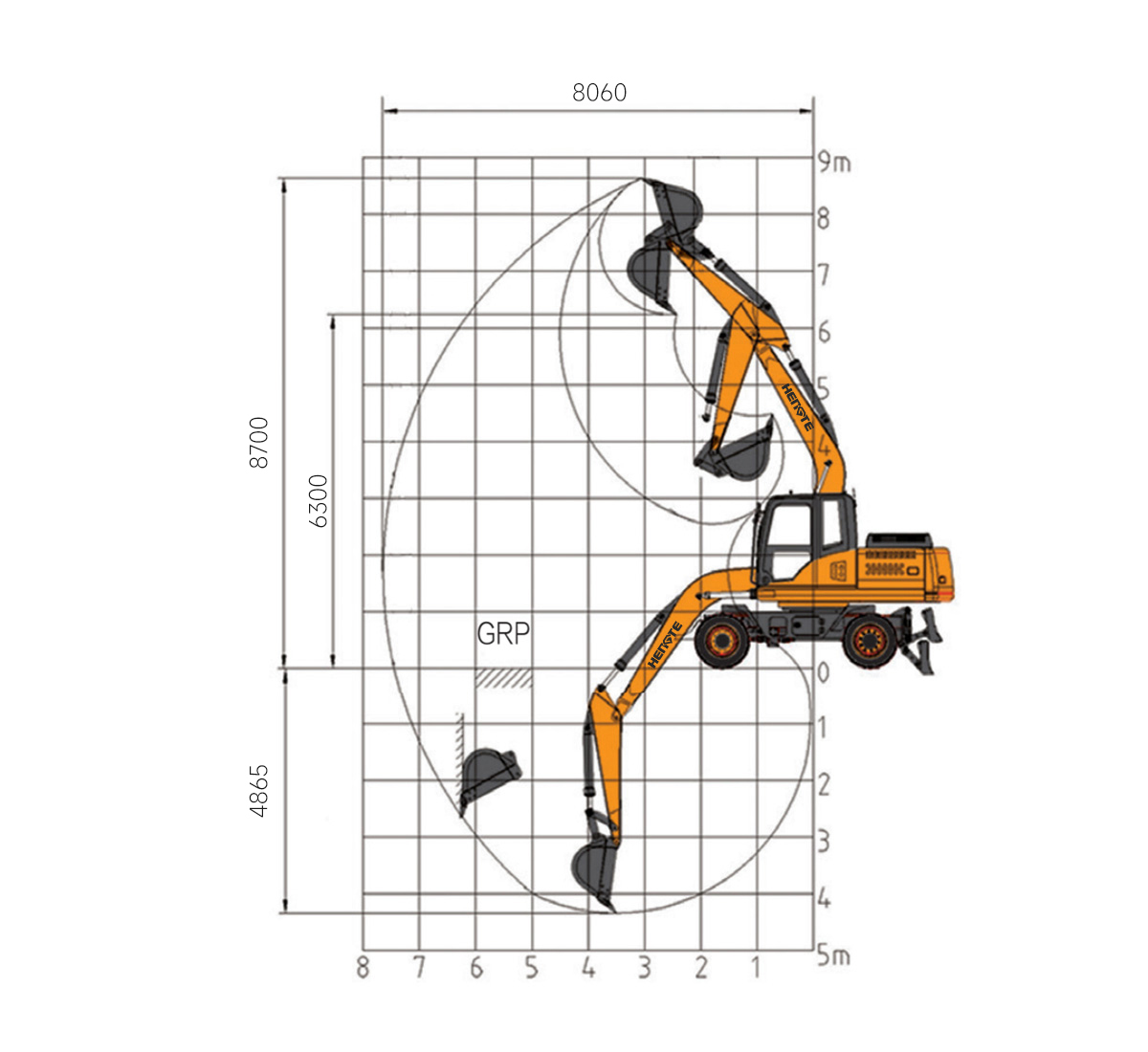

Diagram of the scope of work(unit:mm)
由于技术不断更新进步,技术参数及配置与实物差异之处以交机实物为准;另,图片上的机器可能包括附加设备。
