HT185W Three section arm wheel excavator
HT185W Three section arm wheel excavator

Engine:6BTA5.9-C180-II

Power:132kw/2200rpm

Bucket capacity:0.70m³

Overall weight:16100kg


Free Consultation:86-534-7452888

product details
configuration parameter
Construction case
Online inquiry

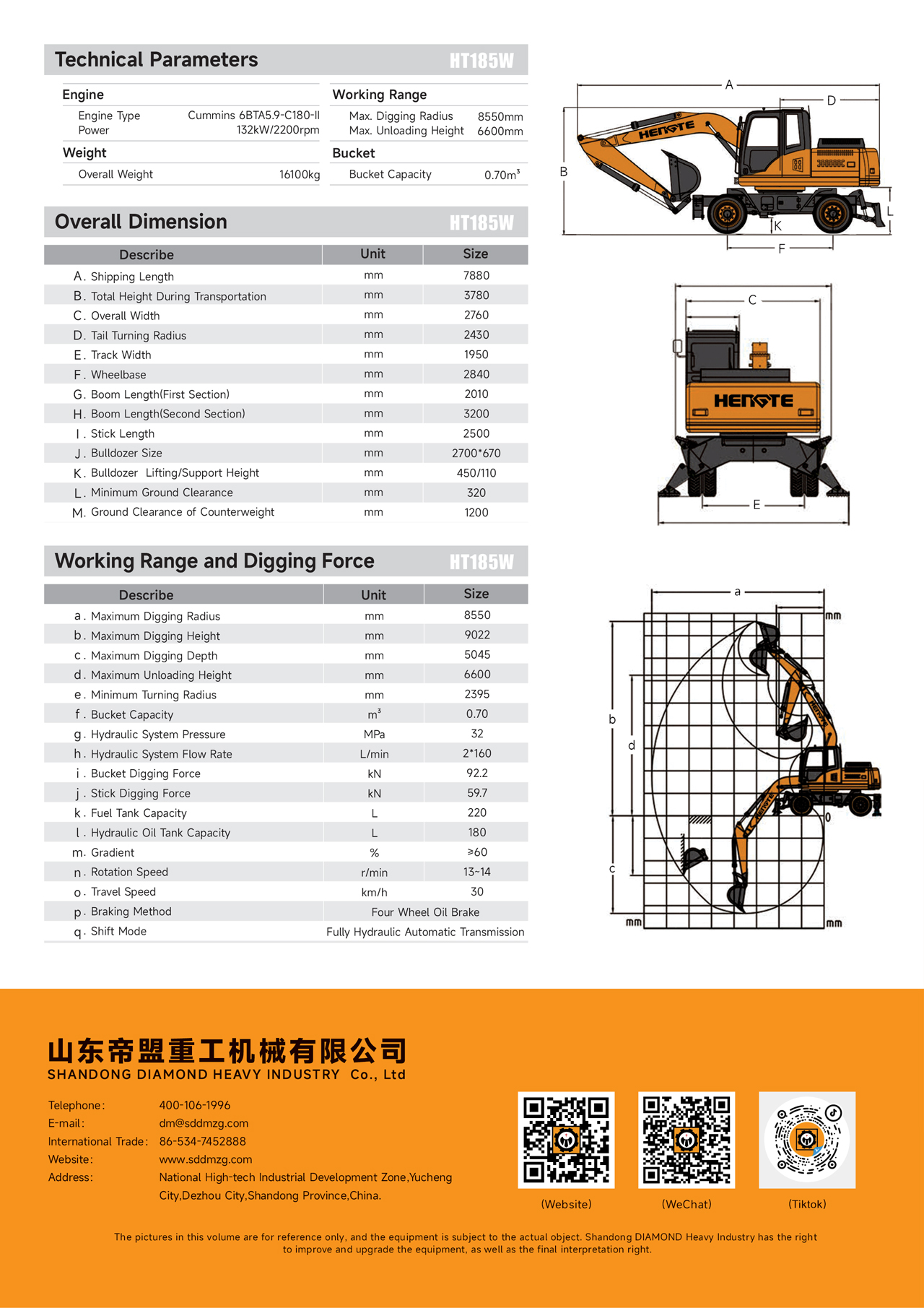

SPECIFICATIONS
Brand:HENGTEVehicle model:HT185W
Engine model:B5.9CS4 190C(IV)Engine power:140kw/2200rpm
Engine model:6BTA5.9-C180-(出口)Engine power:132kw/2200rpm
Maximum excavation radius:8550mmMaximum unloading height:6600mm
Overall weight:16100kgBucket capacity:0.70m³
Size specifications
Shipping length :8400mmShipping height :3255mm
Overall width :2580mmTail turning radius :2395mm
Turntable width:2500Track width:1900mm
Wheelbase:2645mmBoom length:5100mm
Stick length:2500mmBulldozer height:640mm
Bulldozing board width:2500mmBulldozer lifting height:450mm
Bulldozing plate support height:110mm
Scope of work and excavation force
Maximum excavation radius:8550mmMaximum excavation height:9022mm
Maximum excavation depth:5045mmMaximum unloading height:6600mm
Hydraulic system pressure:32MPaHydraulic system flow rate:2*160L/min
Bucket digging force :92.2knDipper arm digging force:59.7kn
Bucket capacity:0.70m³Fuel tank capacity:220L
Hydraulic oil tank capacity:180LGradient :≥60%
Rotation speed:13-14r/minMaximum walking speed on highways:30km/h

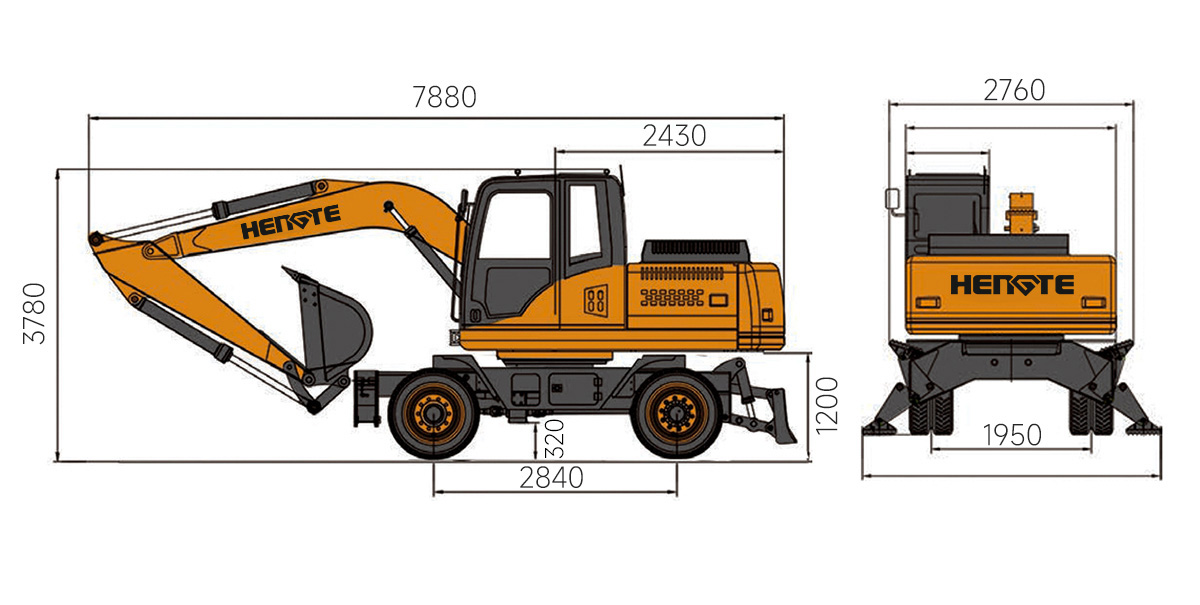

Parameter specification diagram (unit: mm)

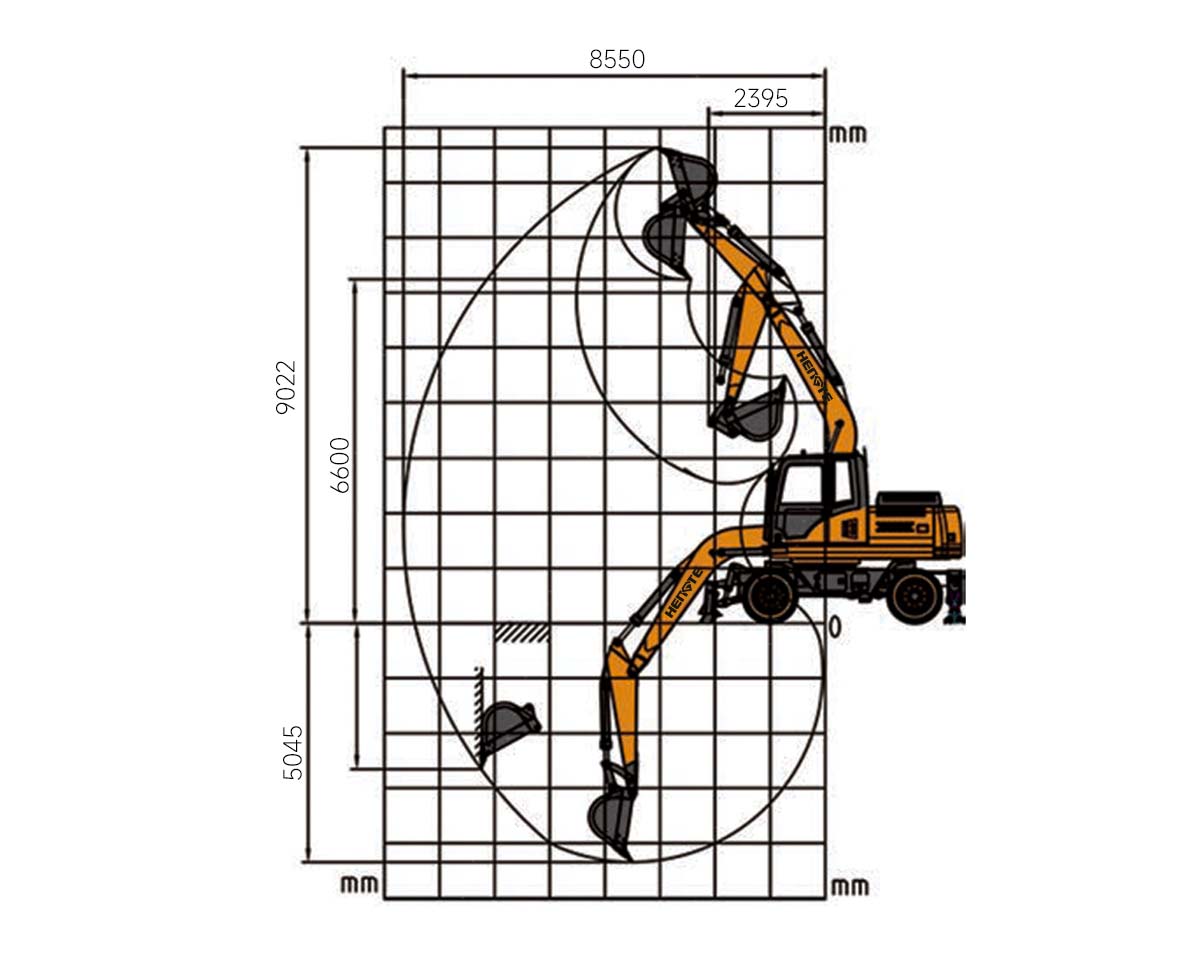

Diagram of homework scope (unit: mm)
由于技术不断更新进步,技术参数及配置与实物差异之处以交机实物为准;另,图片上的机器可能包括附加设备。
