Engine:QSB5.9-C180-Ⅱ

Bucket capacity:1.0m³

Engine power:132kW/2200rpm

Working weight:21500kg


Free Consultation:86-534-7452888

product details
configuration parameter
Construction case
Online inquiry






HT215W Tire excavator

Basic parameters
Brand:HENGTEVehicle model:HT215W
Engine model:QSB5.9-C180Engine power:132kw/2200rpm
Maximum excavation radius:10050mmMaximum unloading height:8020mm
Overall weight21500kgBucket capacity:1.0m³
Size specifications
Shipping length :9700mmShipping height :3300mm
Overall width :2490mmTail turning radius :2750mm
Boom length:5700mmStick length:2900mm
Track width:1975mmWheelbase:2855mm
Turntable ground clearance:1210mmGround clearance of rear axle:320mm
Fuel tank capacity:350LHydraulic oil tank capacity:215L
Scope of work and excavation force
Maximum excavation radius:10050mmMaximum excavation height:11000mm
Maximum excavation depth:6437mmMaximum unloading height:8020mm
Bucket digging force :152.1knDipper arm digging force:119.5kn
Bucket capacity:1.0m³Hydraulic system flow rate2*239L/min
Maximum walking speed on highways:30km/hClimbing ability:≥60%

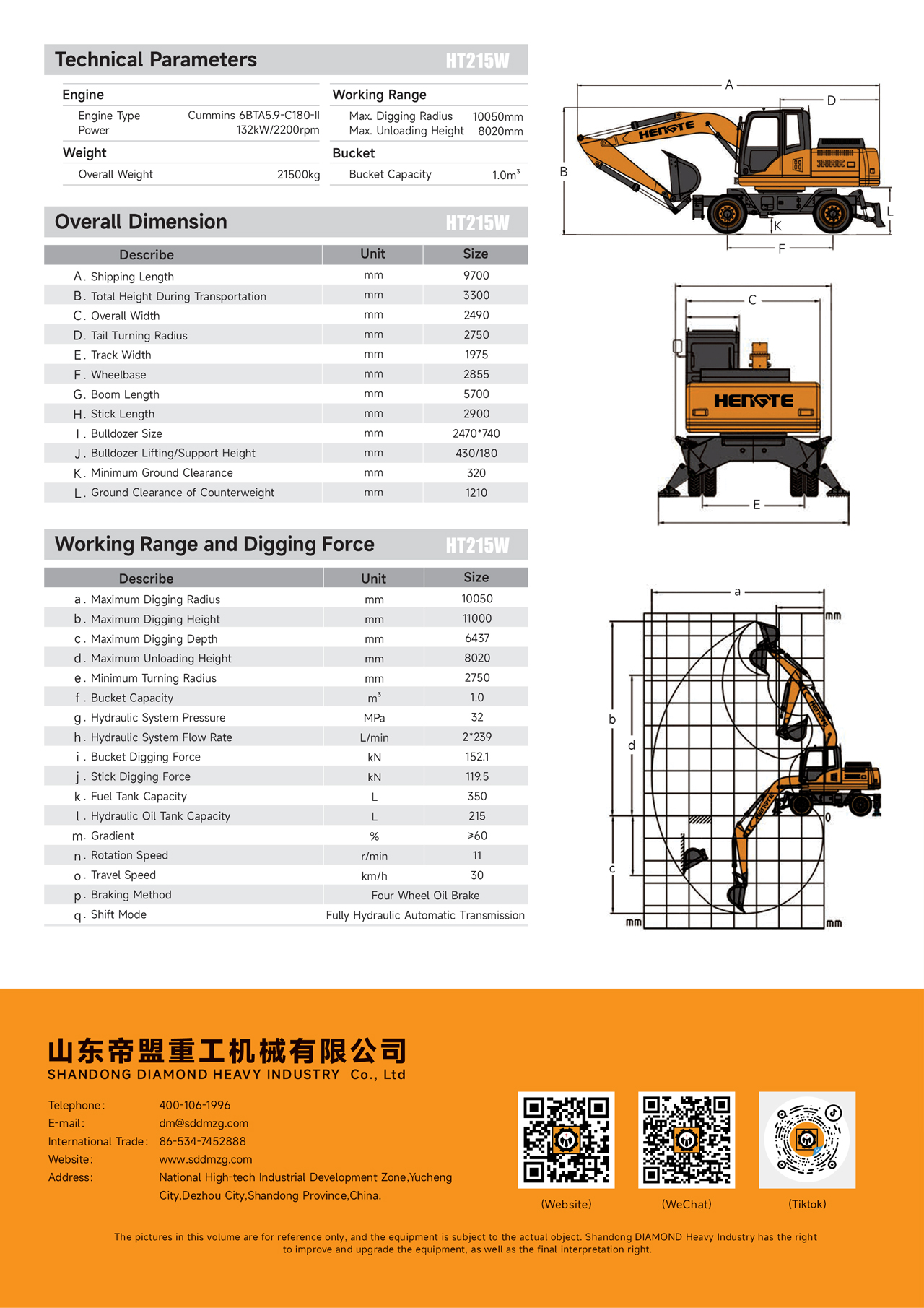

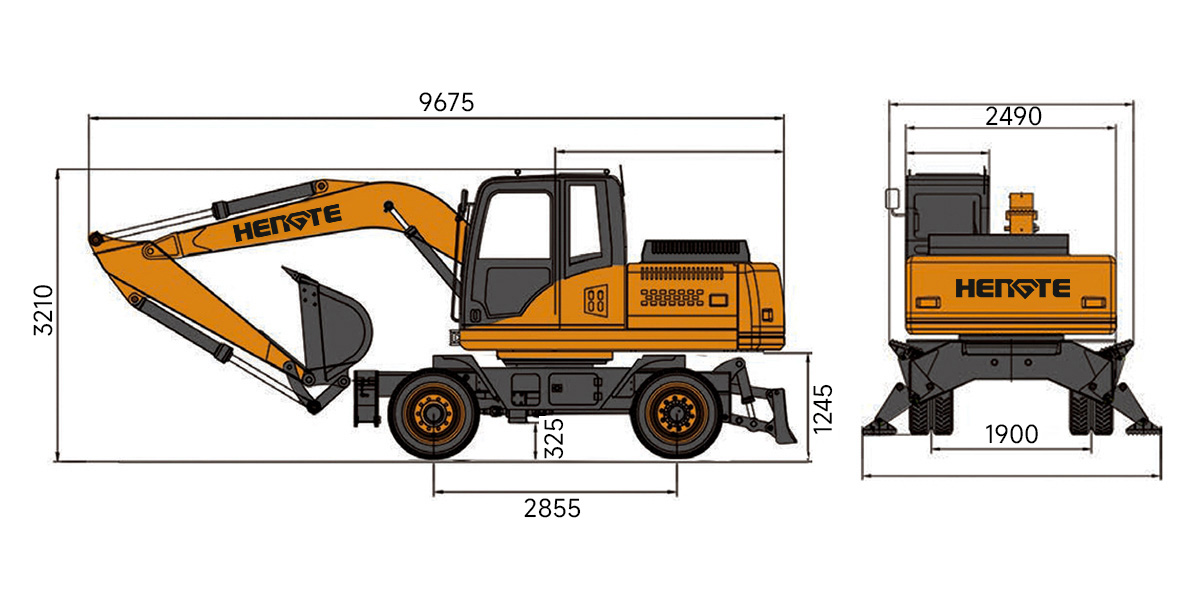

Parameter specification diagram (unit: mm)

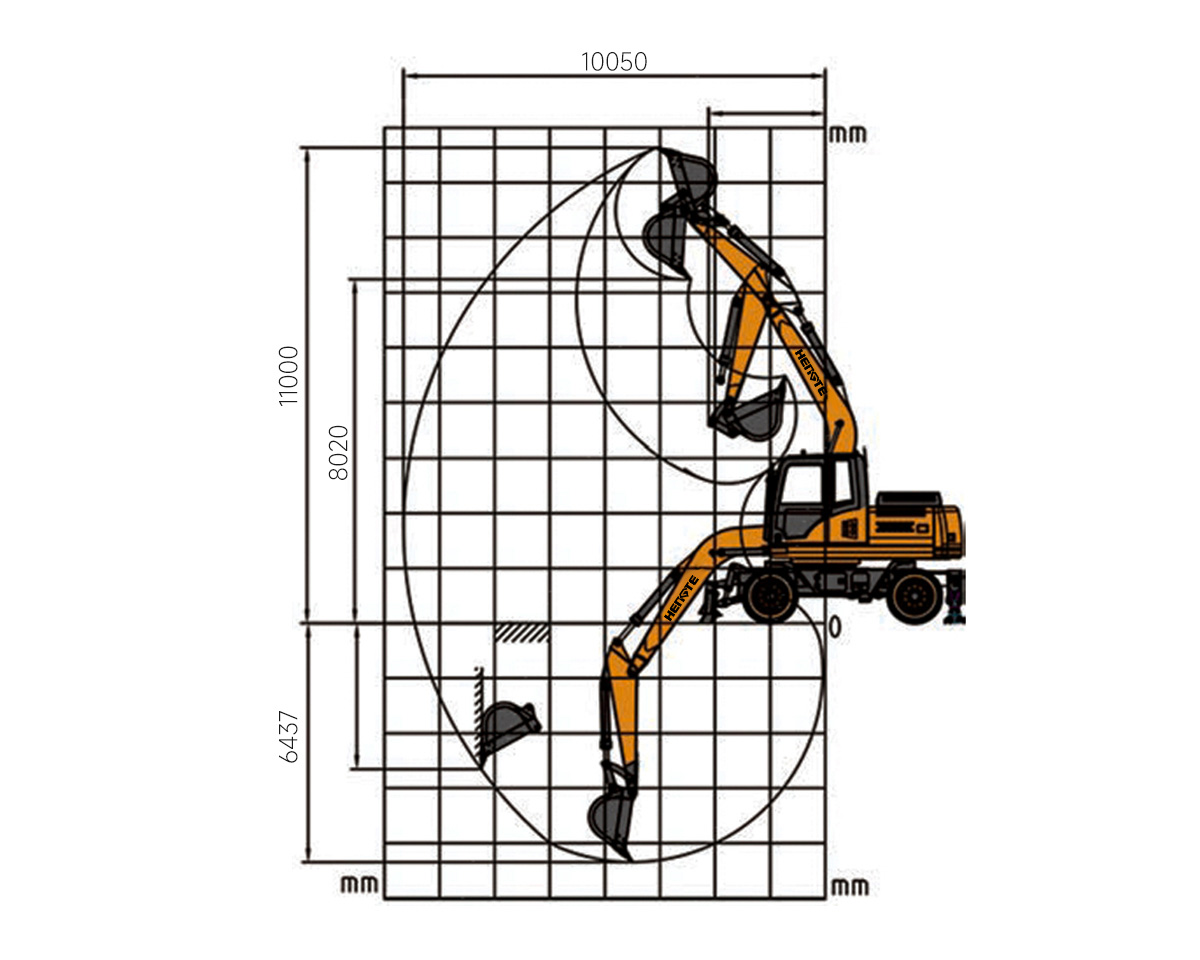

Diagram of homework scope (unit: mm)

Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine in the picture may include additional equipment.
