    HomePage/Excavator/Mini excavator
HT20
HT20
HT20

Engine：Yanmar 3TNV76-PCT

Engine power：14.1kw/2200rpm

Bucket capacity：0.06m³

Working weight：1940KG

Applicable working conditions：ENWEN.jpg


Free Consultation：86-534-7452888

Browse the brochure Order Consultation
product details
configuration parameter
Construction case
Online inquiry







1

Operating weight （kg）

1960

Rotary motor displacement(mL/r)24.5

2

Standard bucket capacity （m³）

0.06

Travel motor displacement(mL/r)16

3

Engine power/speed(kw/r/min)

10.3/14.1

Track typeRubber track

4

Engine model


Total length (during transportation)(mm)3635

5

Rotation speed(r/min)

11

Total width(mm)1400

6

Walking speed(km/h)

3

Total height(mm)2320

7

Climbing ability(%)

50

Track gauge(mm)1150

8

Maximum stick digging force(KN)

9

Standard track width(mm)250

9

Maximum bucket tooth digging force(KN)

12

Bulldozing board width(mm)1400

10

Ground specific voltage(kPa)

26

The total length of the track(mm)1632

11

Hydraulic system type

Plunger variable displacement pump system

Rear end turning radius(mm)640

12

System set pressure(MPa)

20

Maximum excavation height(mm)3421

13

Main pump displacement(mL/r)

2*12.1+3.5

Maximum unloading height(mm)2358

14

Working device pressure(MPa)

20

Maximum excavation depth(mm)2159

15

Pressure of walking device(MPa)

20

Maximum excavation radius(mm)3908

16

Rotary device pressure(MPa)

12.5

Bulldozer lifting distance (upper)(mm)200

17

Pilot pressure(MPa)

3.5

Bulldozer lifting distance (lower)(mm)180

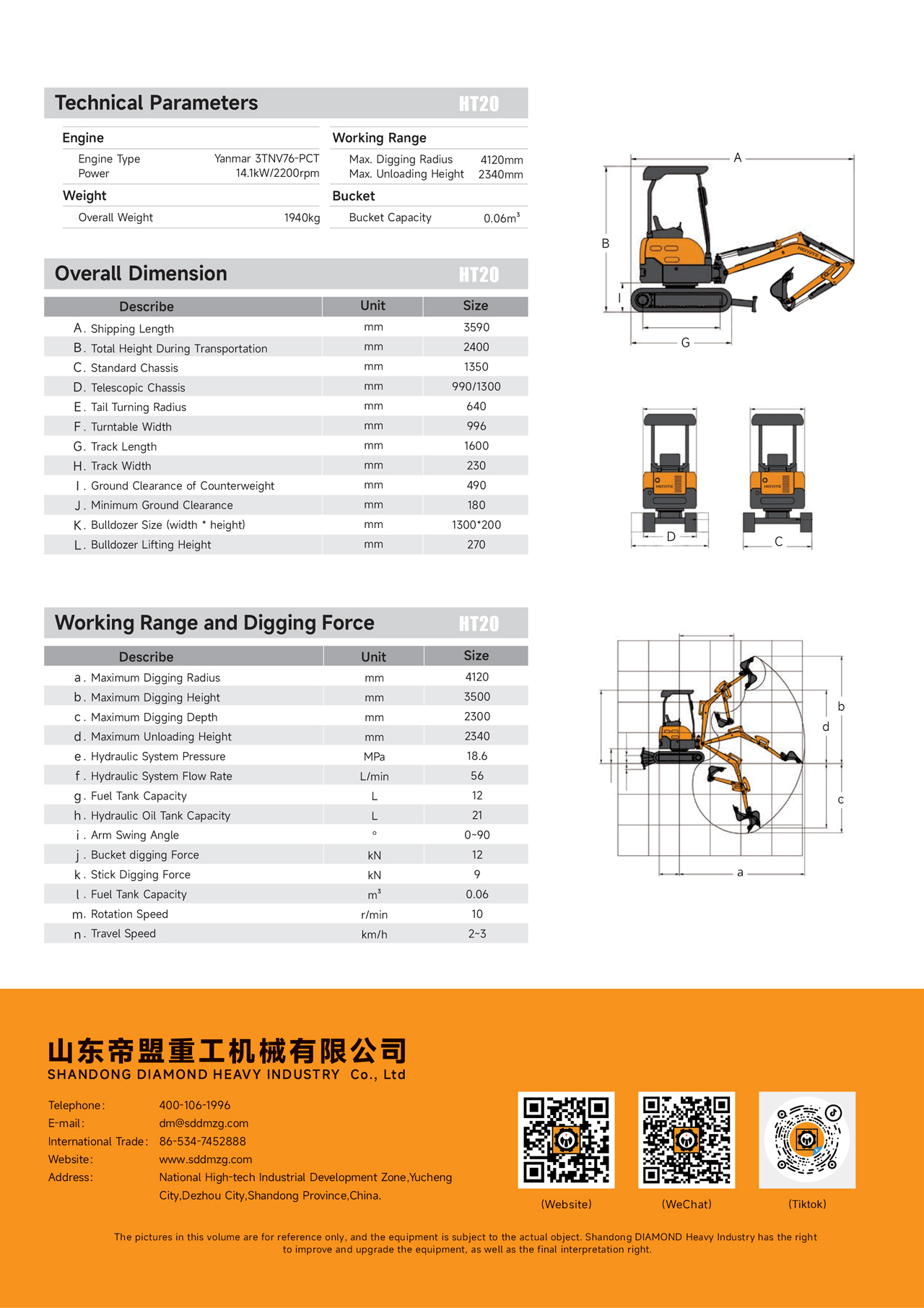

Configuration parameter

Basic parameters
Brand：HENGTEVehicle model：HT20
Engine model：Yanmar 3TNV76-PCTEngine power：14.1kW/2200rpm
Maximum excavation radius：4120mmMaximum unloading height：2340mm
Overall weight：1940kgBucket capacity：0.06m³
Size specifications
Shipping length ：3590mmShipping height ：2400mm

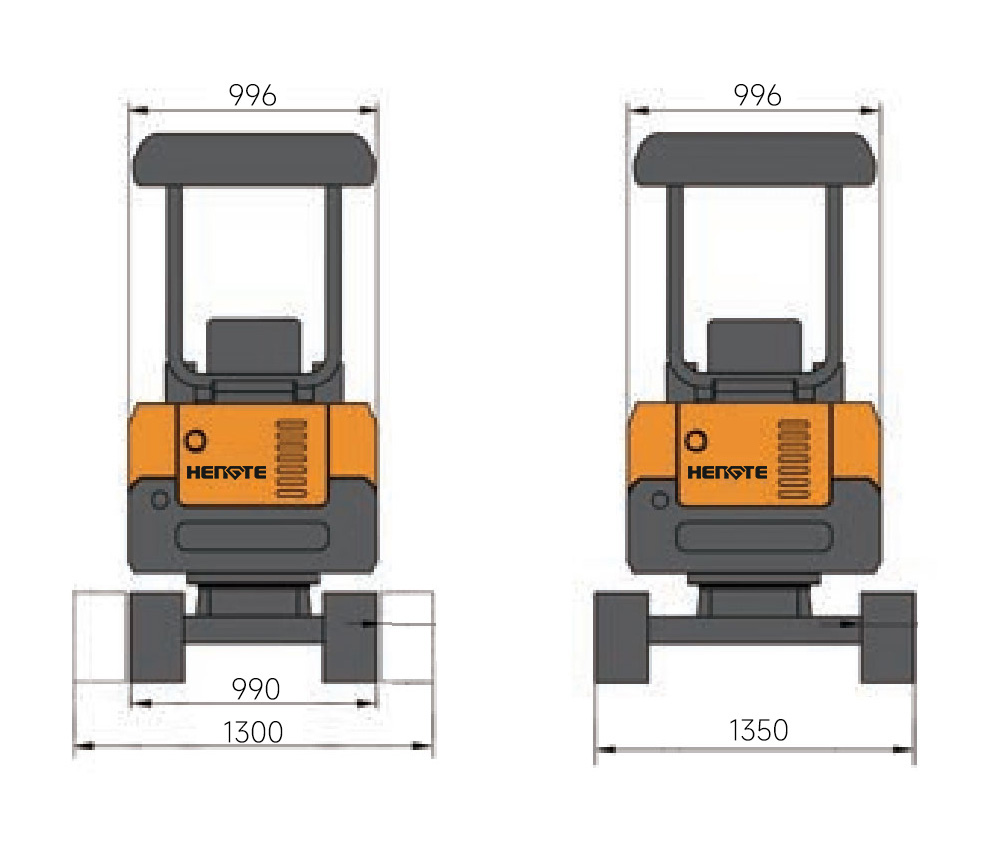

Standard chassis width ：1350mmScalable chassis width ：990(shrink)/1350(extend)mm
Tail turning radius：640mmTurntable width：996mm
Track length：1600mmTrack width ：230mm
Boom length：1840mmStick length：1015mm
Minimum ground clearance：180mmGround clearance of counterweight：490mm
Scope of work and excavation force
Maximum excavation radius：4120mmMaximum excavation height：3500mm
Maximum excavation depth：2300mmMaximum unloading height：2340mm
Hydraulic system pressure：18.6MPaHydraulic system flow rate：56L/min
Bucket digging force ：12knDipper arm digging force：9kn
Bucket capacity：0.06m³Walking speed：（2~3）km/h

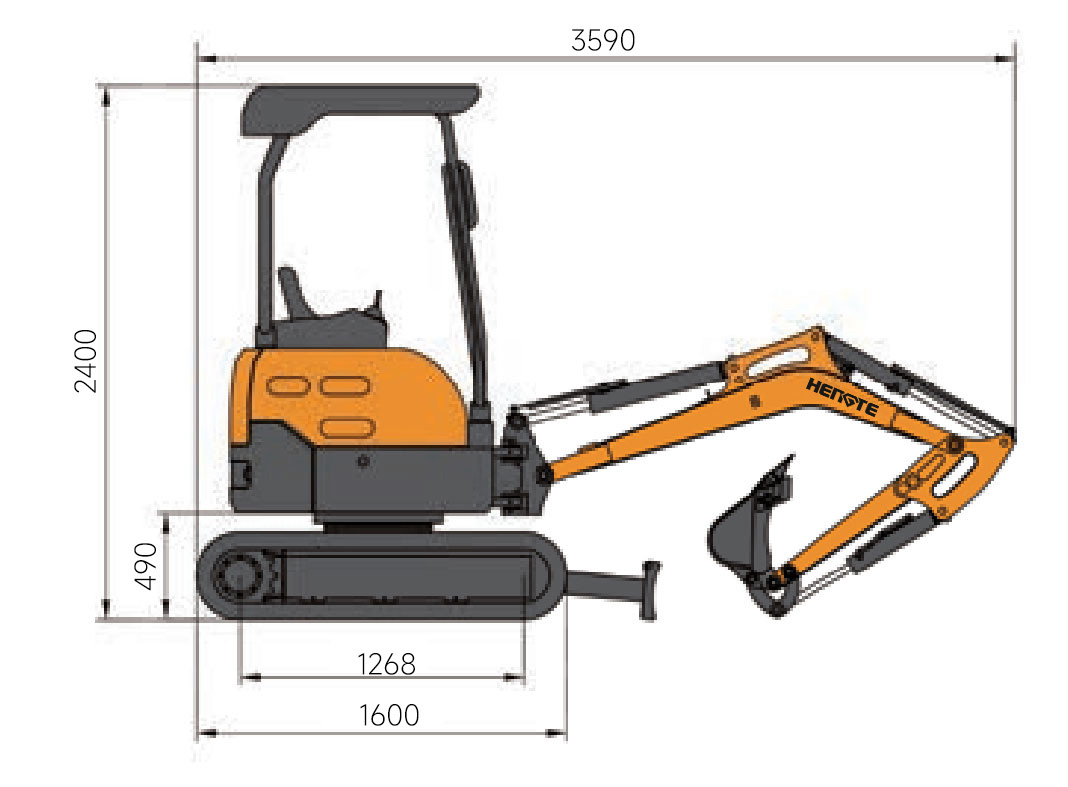

Parameter specification diagram (unit: mm)

图示1 -a.jpg

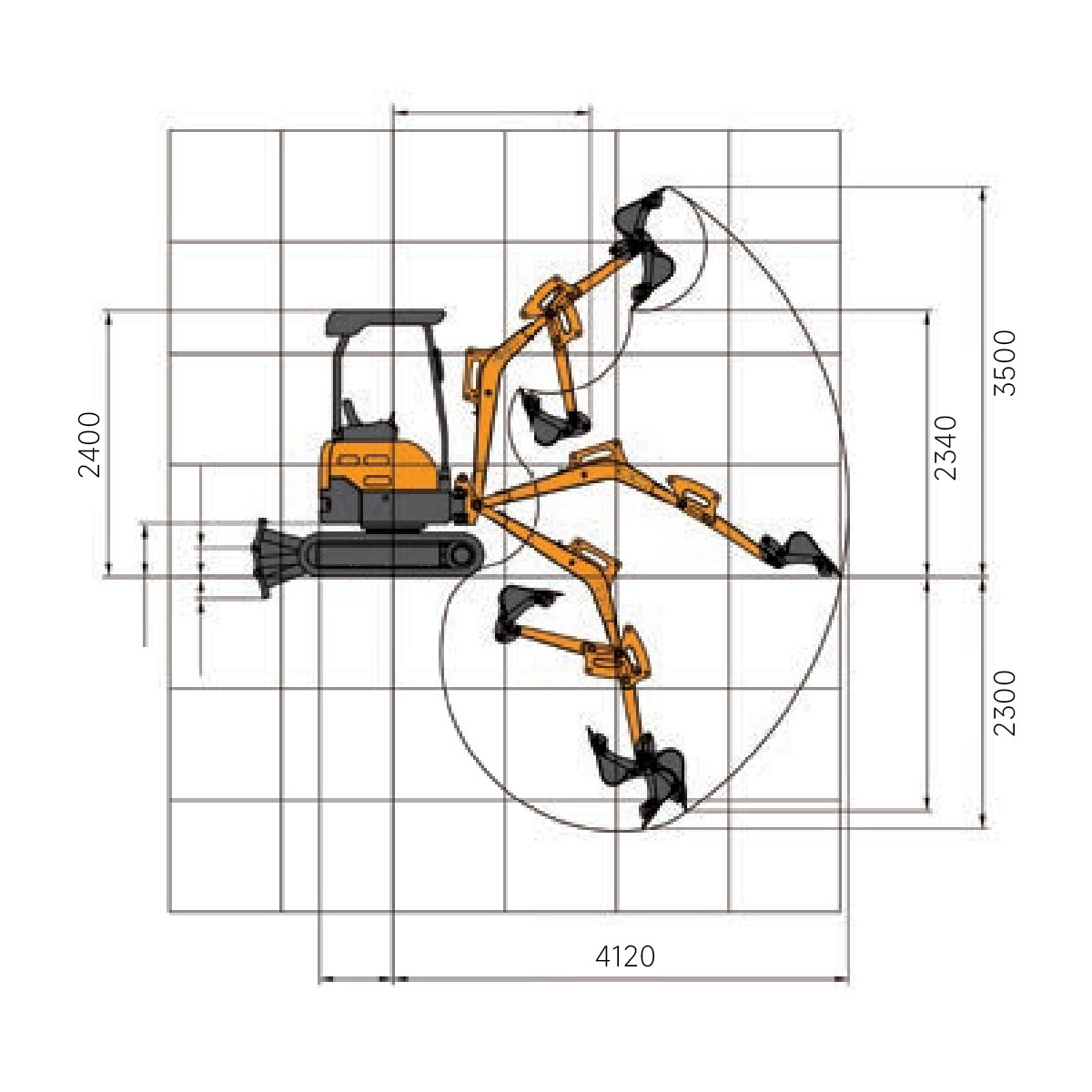

Diagram of homework scope (unit: mm)

图示1 - c.jpg


Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine in the picture may include additional equipment.
