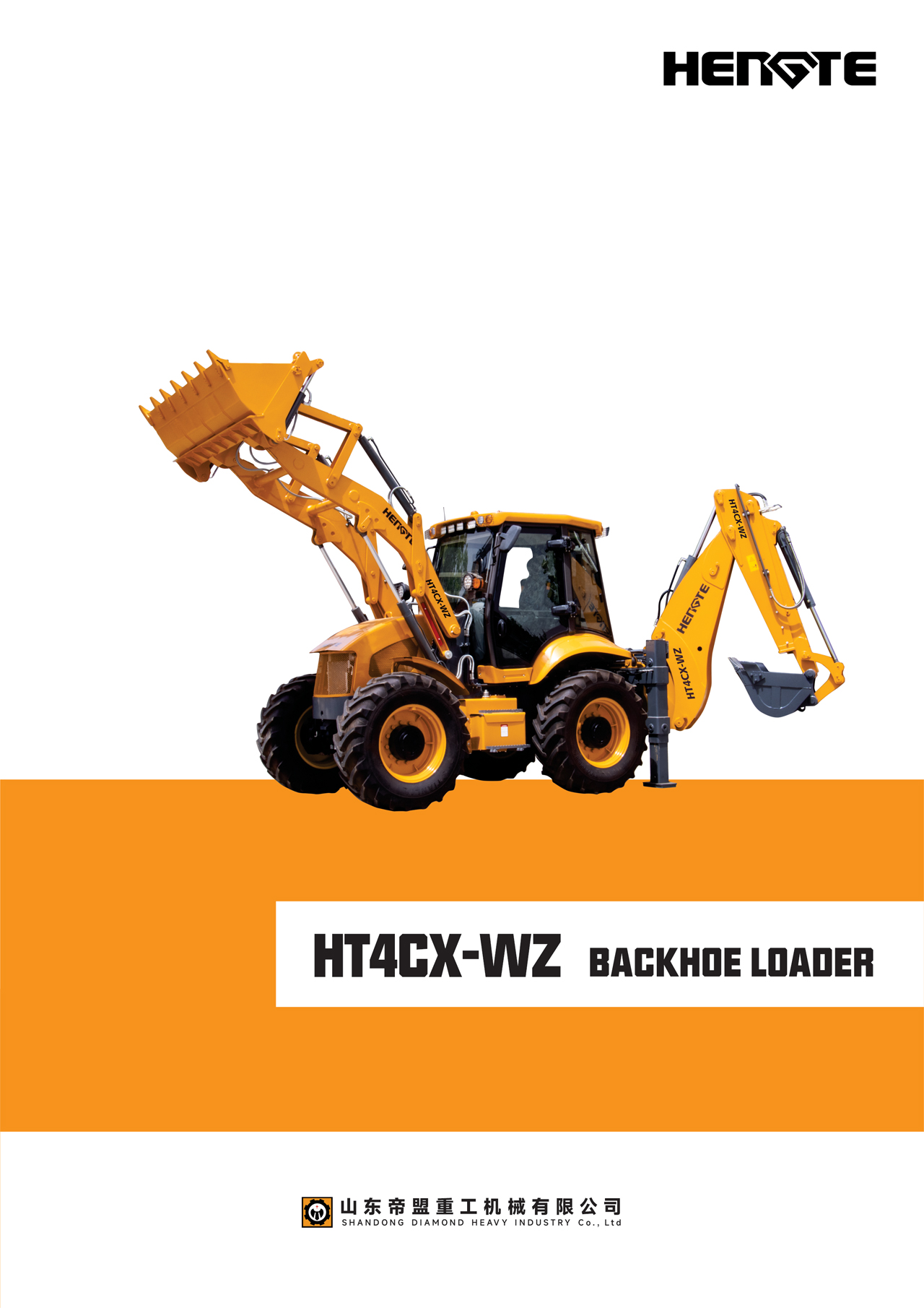

HT4CX-WZ BACKHOE LOADERS
HT4CX-WZ BACKHOE LOADERS

Engine：YUCHAI YC4A105Z-T20

Power：75kW/2200rpm

Bucket Capacity：1.2m³

Backhoe Capacity：0.30m³

Loading Lifting Capacity：2500kg

Overall Weight：10050kg


Free Consultation：86-534-7452888

Browse the brochure Order Consultation
product details
configuration parameter
Construction case
Online inquiry

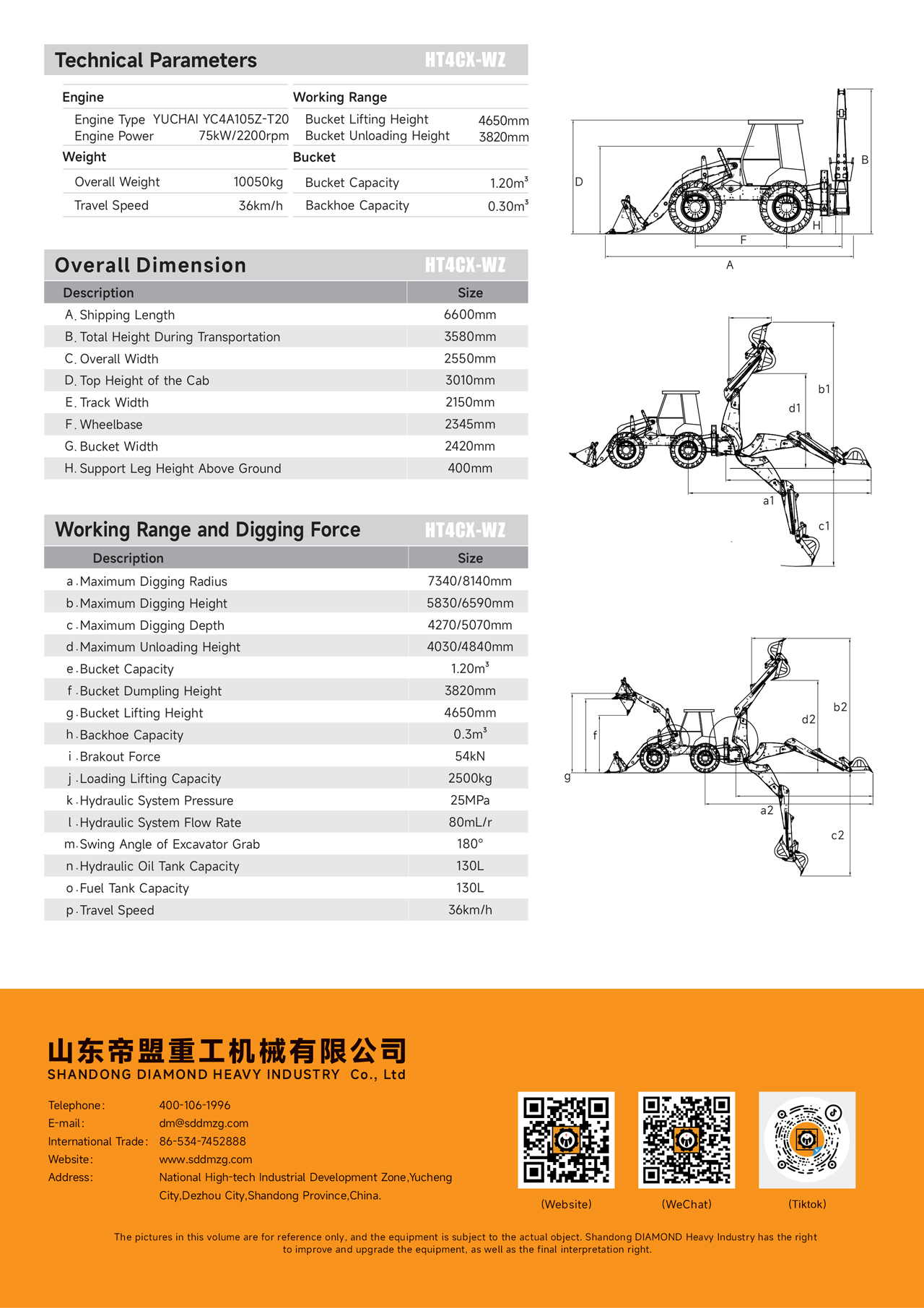

SPECIFICATIONS
Brand：

HENGTE

Model：

HT4CX-WZ

Overall Operating Weight：

10050kg

Transport Dimension
Long*Width*Height(L*W*H)6420*2530*3620
Wheelbase：2335mm
Height (Excavation Arm Folding)：3620mm
Bucket Capacity：

1.2m³

Breakout Force：54Kn
Loading Lifting Capacity：2500kg
Bucket Dumping Height：3150mm
Bucket Dumping Distance：900mm
TrackWidth：2150mm
Backhoe Capacity：0.3m³
Maximum Digging Depth：3820(Standard)mm  4770(Stretch)mm
SwingAngle of Excavator Grab：180°
Maximum Digging Force：50Kn
Engine
Model：YUCHAI YC4A105Z-T20
Type：In Line Directinjection Four-Stroke andInjection CombustionChamber
Cylinder-Inside Diameter*Stroke：4-108*132
Rated Power：75kW/2200rpm
Rated Speed：2200r/min
Minimum Fuel Consumption：≤230g/km.h
Maximum Torque：≥400N.M
Displacement：4.836L
Steering System
Model of Steering Device：BZZ-250
Steering Angle：+35°
Minimum Turning Radius：6950mm(Bucket Flipping Outward)
Pressure of the System：14Mpa
Axle
Manufacturer：XGMG
Model：ABO92F+WABO92R

Main Reduction Wheel Side Deceleration Type：

Secondary Decelerator
Rated Static Load of the Axle：22.5T(Front Axle)/18.75(Rear Axle)
Transmission System
Torque Converter
Model：MYF120
Type：Single-stage Three Elements
Maximum Efficiency：84.4%
Inlet Pressure：0.55~0.90Mpa
Outlet Pressure：0.18~0.25Mpa
Cooling Method：Oil-cooling Pressure Circulation
Gearbox
Type：

Semi Automatic Electronic Gear Shifting

Model：MYF120II
Gears：

Forward 4 Gears, Backward 4 Gears (Two Wheel Drive/Four-Wheel Drive Switchable)

Maximum Speed：36Km/h
Tyre
Model：16.9-28
Pressure of Front Wheel：0.35Mpa
Pressure of Back Wheel：0.35Mpa
Brake System
Service BrakeImported Brake System
Built-in
Wet Brake
Self-balance
Emergency BrakeControl Force Applies Braking

Manual Operation Power Terminating Brake

Hydraulic System
Working Pump Discharge：

63ml/r

Working Pump Pressure：21Mpa
Type of Steering Gear：LP3VL80
Hydraulic Tank Capacity：130L
Diesel Tank Capacity：130L

Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine in the picture may include additional equipment.
